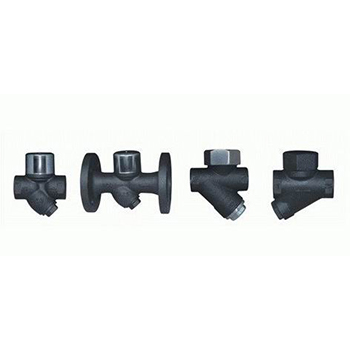

Product Name: Imported Disc Trap Valve Model:
Buhrer
Drive method: automatic Connection form: flange, thread
Structural form: disc type Seal structure: water seal
Pressure range: 1.6-16MPa Nominal dia
meter: DN15-50
Common materials: WCB, 304, 316, etc.
Product introduction
The imported disc type trap produced by Breer can be driven by automatic mode, flanged or threaded by connection method, disc type by structure, water seal by sealing structure, pressure range PN1.6-16MPa, nominal The dia
meter is DN15-50mm, and the materials can be WCB, 304, 316, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
Imported disc traps When the American
Buhrer brand trap device is started, air and condensed water first flow through the trap at a lower pressure, the valve disc is lifted through the inlet hole, and then discharged through the outlet hole. When the pressure and temperature rise After that, the internal pressure rises, which increases the amount of condensed water and increases the flow rate.At this time, the static pressure under the valve plate decreases, causing the valve plate to fall, and the steam flows from the middle of the outlet hole from the periphery to the gap between the valve plate and the valve cover and enters. Pressure chamber, press the valve disc on the seal ring, and close the valve. When the temperature of the steam in the pressure chamber decreases, condensation begins to reduce the pressure in the pressure chamber. The inlet pressure lifts the valve disc and the trap opens to drain water.
advantage:
1. Simple structure, easy to install and maintain, resistant to water hammer.
2. Resistance to water hammer has no effect on sudden pressure changes.
3. Can be used in superheated steam systems.
4. High pressure and high temperature steam lines can be used.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
