Brand Name:
ACVIN Brand
Valve dia
meter: DN1 ～ DN50mm
Pressure range: 0.5mpa ～ 300mpa
Applicable medium: water, oil, gas, steam, etc.
Power supply voltage: DC12V DC24V AC220V AC380V
Temperature range: -196 ℃ ～ + 700 ℃
Interface connection: thread, flange, welding, external thread, etc.
Wiring method: lead type, terminal block type, socket type
Valve type: ordinary type, high pressure type, high temperature resistance type, low temperature type
Installation method: Use the direction arrow to pass through its dielectric fluid and install it vertically in the working
coil.
product description:

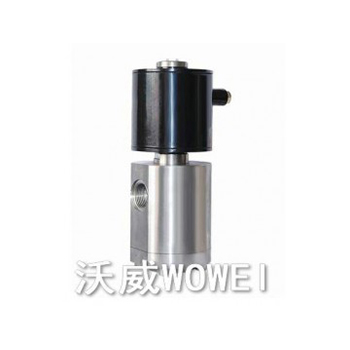

The imported ultra-high pressure solenoid valve has powerful functions, reliable performance, convenient connection, high control precision, straightening stroke and output thrust valve displacement, and precise adjustment and control of fluid para
meters. For frequent switching, working conditions and design control requirements, it has the advantages of beautiful appearance, good sealing, no leakage, and long service life. It is common in power plants, steel plants, chemical, beer, beverage, paper, printing and dyeing industries. Products comply with Gb / t4213-2008, DIN and ANSI standards.
Working principle of imported ultra high pressure solenoid valve:
Normally closed solenoid valve, when the
coil is energized, the moving iron core attracts and opens the pressure relief hole, so that the pressure on the upper part of the main valve core is reduced, so that the main valve core is pushed upward by the pressure difference, and the valve is opened; when After the
coil is de-energized, the moving iron core drops due to its own weight and the action of the moving iron core spring. The pressure relief hole is closed, so that the upper surface of the main valve core forms pressure. In addition to the main valve core compression spring and its own weight, the main valve core drops to the valve port. The valve is closed.
Normally open solenoid valve. When the
coil is energized, the pressure relief hole forms a closed state opposite to normally closed and the valve is closed. When the
coil is powered off, the pressure relief hole forms an open state opposite to normally closed and the valve is opened.
Principle with signal feedback device: When the solenoid valve is open, the common line is in communication with the open signal line and is not in communication with the close signal line; when the solenoid valve is closed, the common line is in communication with the close signal line and is not connected with the open signal line.
The pilot-operated ultra-high pressure solenoid valve uses a full stainless steel pilot piston, which greatly improves the pressure bearing capacity of the solenoid valve, and the piston ring can be flexibly extended.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
