Brand Name:
ACVIN Brand
Applicable medium: water, gas, oil, corrosive liquid or gas, etc.
Body material: stainless steel 304, 316, 316L, PTFE
Control mode: normally open, normally closed, self-retaining
Power supply voltage: AC24 ～ 380V; DC12 ～ 220V
Pressure range: 0 ～ 200MPa
Temperature range: -196 ℃ ~ + 650 ℃
Medium viscosity: less than 50C St
Protection performance: dustproof, waterproof, explosion-proof. Select according to working conditions
Wiring method: terminal block type; lead type
Connection method: flange, welding, internal thread, external thread (special interface can be customized or add adapter)
product description:

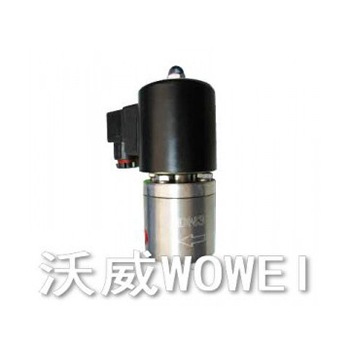

Working range of imported high temperature and high pressure solenoid valve:
Stainless steel high temperature and high pressure solenoid valve is suitable for experiments and scientific research, industrial kiln, chemical industry, shipbuilding industry, petrochemical, electric power, chemistry, light industry, mechanical pipeline media automation control place and environment. Stainless steel valve, its general medium water gas oil, corrosive fluid or gas and mixed medium, high pressure and high temperature resistance ability, very suitable for high temperature and high pressure anti-corrosive medium.
Working principle of imported high temperature and high pressure solenoid valve:
Normally open: When the
coil is energized, the solenoid core is closed, the pressure relief hole is closed, the main piston is pushed by the medium pressure, the main valve port is closed, and the medium is cut off.
When the
coil is de-energized, the main valve port opens and the medium circulates.
Normally closed: When the
coil is energized, the solenoid core is closed, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened, and the medium is circulated.
When the
coil is de-energized, the main valve port is closed and the medium is cut off.
Features of imported high temperature and high pressure solenoid valve:
1. CNC machine tools to ensure the accuracy and reliability of solenoid valves
2. The use of a special plastic
coil to improve the reliability of the valve and to prevent water and moisture
3. Free installation on site; quick action response, using original sealing material, life is ten times of similar products
4. Liquid, gas and oil can be mixed and used to increase the range of use of the valve
5. It can be equipped with a manual handle switch to open and close the solenoid valve when the solenoid valve
coil is de-energized or burned.
Exquisite appearance; piston structure; stable performance; refined
coil, not easy to burn; most suitable for use in flammable and explosive dangerous places
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
∷
