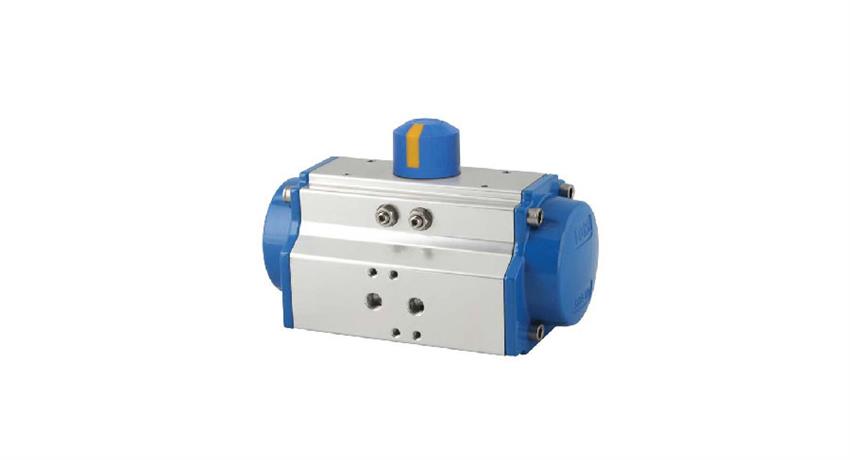

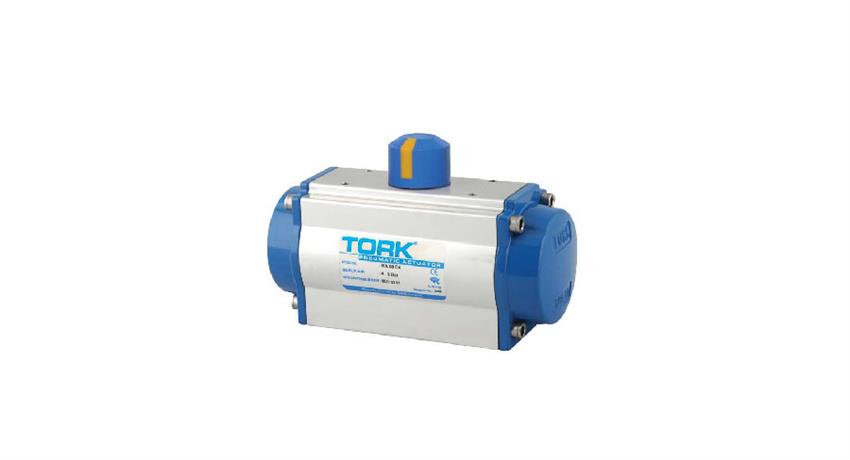

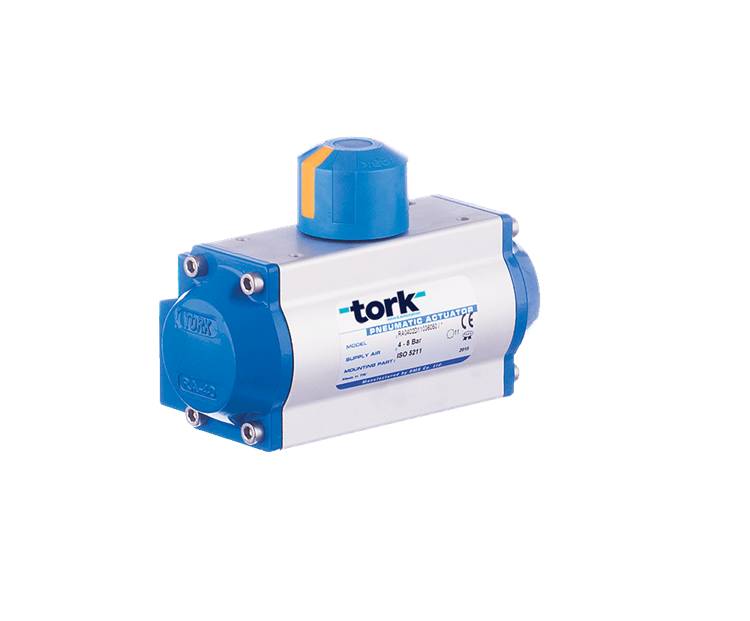

GENERAL DETAILS
|
Application
|
:
|
Ball Valve, Butterfly Valve, Plug Valve, Dampers on-off / proportional control
|
|
Size
|
:
|
RA 40 SR … RA350 SR
|
|
Supply Pressure Air
|
:
|
4 - 8 bar
|
|
Output Tork Value
|
:
|
5 Nm … 1943 Nm
|
|
Body
|
:
|
Extruded Aluminium / Cast Aluminium
|
|
Caps and Pistons
|
:
|
Die cast Aluminium
|
|
Temperature
|
:
|
-20 ºC...80 ºC
|
|
Valve Connection
|
:
|
ISO 5211 / DIN3337 standard
|
|
Limit Switch Connection
|
:
|
Namur standard, VDI / VDE3845
|
|
Positioner Connection
|
:
|
Namur standard, VDI / VDE3845
|
|
Solenoid Valve Connection
|
:
|
Namur standard, VDI / VDE3845
|
|
Stroke Adjustment
|
:
|
Both directions open and close positions ( ±5%)
|
SPECIFICATION
Single Acting
Actuator
|
Torque Value [Nm]
|
Valve Connection
|
Open Close Time
|
Air Consumption
|
|
Serie No
|
P:6 Bar
|
Spring Value
|
ISO5211
|
[Sn]
|
[Lt]
|
|
SA:Single Acting
|
0º
|
90º
|
0º
|
90º
|
|
Open
|
Close
|
Open
|
Close
|
|
TORK-RA40SR
|
10.3
|
4.4
|
9.5
|
3.7
|
F03/F04/F05
|
0.26
|
0.34
|
0.09
|
0
|
|
TORK-RA52.SR
|
23
|
9.7
|
22.6
|
9.2
|
F04/F05/F07
|
0.33
|
0.38
|
0.17
|
0
|
|
TORK-RA60.SR
|
25.6
|
10.7
|
25.1
|
10.3
|
F04/F05/F07
|
0.33
|
0.38
|
0.17
|
0
|
|
TORK-RA75.SR
|
60.4
|
29.8
|
58.5
|
27.9
|
F05/F07
|
0.48
|
0.57
|
0.5
|
0
|
|
TORK-RA80.SR
|
67.1
|
33.1
|
65
|
31
|
F05/F07
|
0.48
|
0.57
|
0.5
|
0
|
|
TORK-RA100.SR
|
111.2
|
69.4
|
90.8
|
49
|
F07/F10
|
0.63
|
0.95
|
0.73
|
0
|
|
TORK-RA120.SR
|
218.3
|
151.1
|
154
|
86.8
|
F07/F10
|
1.15
|
1.47
|
1.61
|
0
|
|
TORK-RA143.SR
|
362.5
|
230.3
|
215.5
|
347.7
|
F10/F14
|
3.2
|
3
|
2.85
|
0
|
|
TORK-RA160.SR
|
481.7
|
305.7
|
283.3
|
459.3
|
F10/F14
|
3.8
|
3.5
|
3.25
|
0
|
|
TORK-RA200.SR
|
836.7
|
607.8
|
663.3
|
892.2
|
F14/F16
|
4.8
|
4.4
|
6.41
|
0
|
|
TORK-RA270.SR
|
1955.8
|
1417.7
|
1568.4
|
1030.4
|
F16
|
5.3
|
4.75
|
13.75
|
0
|
|
TORK-RA350.SR
|
3121.4
|
1943.1
|
3129.2
|
1950
|
F16
|
6.2
|
5.3
|
25
|
0
|
Why Use Single Acting Pneumatic Actuator?
The preferred actuator type is the single acting actuators (spring return actuators) where the valve is requested to return to the first position when the power is cut. The spring return actuator is generally preferred in systems requiring safety.
ion of spring return actuator:
The torque values of the ed actuator at P: 6 bar control pressure are given in Nm. In this table, according to the ed values of the ed model (according to 90º) Nm values of the appropriate valve should be ed.
Note: Please refer to the values in the above table when ing the valve for the actuator. The torque of the valve must be 25% less than the actuator torque.
Actuator:
0º: start, closed position actuator
90º: End, open position actuator
Spring:
0º: Spring mounting position
90º: Release position compression
1 bar: 14.5 PSI; 1 Nm: 8.85 LB-in; 1 Kgm: 9,81 Nm
