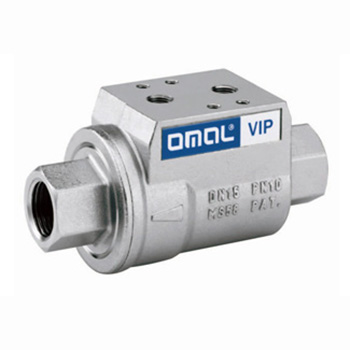

VIP pneumatic shuttle valve
Applications: Gas technology, oxygen, nitrogen generators, vacuum applications, sanitary vessels, refrigeration, etc.
Caliber: DN10 – DN50
Certification: PED; ATEX; GOST-R; UKR
The VIP valve (
OMAL patented product) is a self-control valve in which the actuator (A-B) and the shut-off element (C-D) are combined. Compressed air enters the push piston shaft by one of the two holes and stops at the end of the stroke (valve open or closed). Since the medium pressure is completely released on the valve seat, the movement of the piston shaft is hardly disturbed by the resistance of the medium, so the valve can be opened or closed quickly. The full dia
meter and improved internal valve structure make the medium flow better, the pressure loss is smaller, the volume is smaller, and the life is longer.
Technical characteristics
Function: Double acting, single acting spring return normally open or normally closed
Gas source: double action 3~8bar
Single action 4.2~8bar (dry
filtered air source)
Pressure: up to 10 bar
Connection: G3/8"~2" one-way flow
Lubrication: No lubrication is required. When lubricating, the lubricant needs to be suitable for the seal.
Thread standard: UNI/ISO 7/1 Rp - DIN 2999 (NPT thread available), control element
Connection hole standard: NAMUR.
The VIP valve can be used in any mounting position (horizontal, vertical or tilt) and can be supplied with NBR, FKM or EPDM seals:
- NBR (Ning Qing Rubber): Suitable for air, natural gas, oil, water, etc.
Working temperature: -20 ° C ~ +80 ° C
- FKM (Fluoro Rubber): Perfect for most fluids, not suitable for steam.
Working temperature: -20 ° C ~ +150 ° C
- EPDM (EPDM): Perfect for hot water and steam, not suitable for hydrocarbons (oil, animal fats, etc.).
Working temperature: -20 ° C ~ +150 ° C
Resistant to vacuum: excellent sealing performance, resistant to 740 mm Hg (relative vacuum).
※It can provide sealing for explosive gas. For more detailed application, please contact our technical department.
※ Accessories: Limit switch (If you need to add limit switch, please specify when ordering, otherwise it can't be installed separately after leaving the factory).
Certification: in line with EU PED-97/23
Available in accordance with EU ATEX-94/9 products (if required, please order when ordering)
