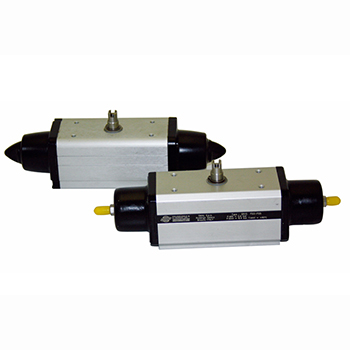

Aluminum Pneumatic Actuator Standard SR Series
Application: Multi-industry applications
Installation size: according to ISO 5211/DIN 3337
Certification: ATEX 94/9/EC; SIL3 (ICE61508); GOST-R; UKR
Standard pneumatic actuators are designed to improve energy efficiency and safety, with fast response, small size and long life
Life and other characteristics, and with fork structure to ensure strong torque and low friction and low consumption when the valve is opened and closed
Loss, high load capacity and good resistance to load load, especially suitable for limited space,
There are a large number of applications that require a place to use. Available in double acting and single acting (spring reset).
Technical features:
Torque: 15Nm - 4000Nm.
Mounting flange: DIN/ISO 5211 DIN 3337.
F03 - F04 - F05 - F07 - F10 - F12 - F14 - F16.
Control valve connection: NAMUR standard.
The corner is 90°.
Torque: The return torque depends on the spring action and is independent of the supply pressure. Available in 4 different spring sizes.
The digital code after the letter DA or SR indicates the torque at 5.6 bar air supply pressure.
The actuator is closed by the spring device. Complies with ATEX Directive 94/9/EC.
Working conditions
Working temperature: 0 ° C ~ 80 ° C, -20 ° C ~ 80 ° C (dry air) (special models: high temperature -20 ° C ~ 150 ° C, low temperature -50 ° C ~ 60 ° C).
Air source: 5.6 bar, maximum 8.4 bar.
Control gas source:
filtered compressed air without lubrication.
In the case of lubricating air, do not use detergent oil or lubricating oil compatible with NBR.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
