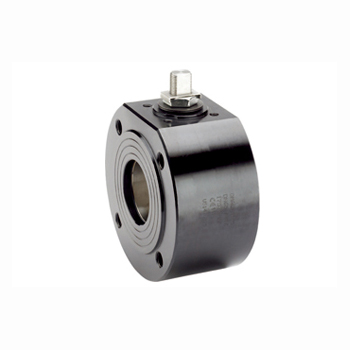

Two-way clamp flange ball valve ITEM 514/515/517/518
Fluid range: air, water, gas, petrochemical and petroleum products
Mounting dimensions: Flange standard: EN 1092-1 DIN 3202; General standard: EN ISO 17292
Certification: Meets 97/23 EC “PED” certification; provides explosion-proof valves that comply with 94/9/EC
Series 514-515-517-518 ball valves with an economical and compact flat flange construction
Design different pressure grade specifications, convenient for customers to choose according to working conditions, cost-effective.
Meets fire safety standards: EN ISO10497, for the petrochemical industry.
* Flat flange structure, compact and economical
* Anti-static device, fireproof design, safe and reliable
* Pressure grading, more convenient selection
Note:
Insulation jacket
Anti-static setting EN 12662-2 par.B.2
Sealable optional: PTFE + carbon graphite
Single-acting valves are installed in the normally closed position when they are shipped from the factory. If other positions are required, please specify.
Ontology form
ITEM 514
ITEM 515
ITEM 517
ITEM 518
Nominal dia
meter
1/2"~4" (DN15~DN100)
Nominal pressure
PN40
PN16
PN63
PN100
Operating temperature
-20 ° C to +150 ° C
Connection method
Flange (according to EN 1092-1PN16/40/63/100; ASME B16.5 Classi 150/300/600)
Fire safety rating
EN ISO 10497; API 607 V.ed
Body material
Carbon steel A 105
Core material
Stainless steel AISI 316 1.4401 UNI X5CrNiMo 17 12 (DN15~DN32)
Stainless steel AISI 304 1.4301 UNI X5CrNi 18 10 (DN40~DN100)
Sealing material
Fluororubber FKM, polytetrafluoroethylene PTFE
Executive agency

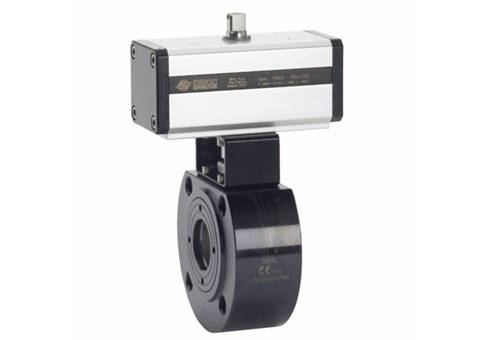

Standard DA series: double acting fork type pneumatic actuator

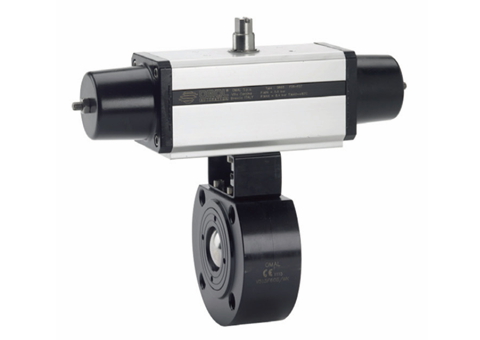

Standard SR Series: Single Action Type Fork Actuator
EA Series: Switching Electric Actuator
AM Series: Regulated Electric Actuator
Fluid range
Air, water, gas, petroleum and petrochemical products
certificate
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
