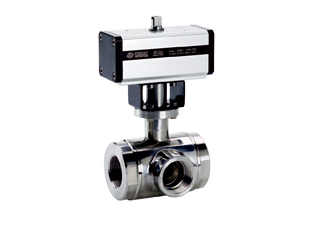

Three-way stainless steel ball valve ITEM 448

Fluid range: air, water, gas, petroleum and petrochemicals, corrosive media

Mounting dimensions: valve head standard: ISO 5211; thread standard: UNI/ISO 7/1Rp

Certification: Provides explosion-proof valves that comply with 94/9/EC

Three links, L type, DN10~DN100, PN16~PN40
Working temperature: -20 ° C to +160 ° C
Used only for commutation
Body surface polishing
Note:
Sealable optional: PTFE + fiberglass
PTFE + carbon graphite
High molecular weight polyethylene
Single-acting valves are installed in the normally closed position when they are shipped from the factory. If other positions are required, please specify.
Ontology form
ITEM 448
Nominal diameter
3/8”~4” (DN10~DN100)
Nominal pressure
PN16-PN25-PN40
Operating temperature
-20 ° C to +160 ° C
Connection method
Thread
Core structure
L hole core
Body material
Stainless steel AISI 316 1.4408
Core material
Stainless steel AISI 316 1.4401 UNI X5CrNiMo 17 12
Sealing material
Fluororubber FKM, polytetrafluoroethylene PTFE
Executive agency
Standard DA series: double acting fork type pneumatic actuator
Standard SR Series: Single Action Type Fork Actuator
Fluid range
Air, water, gas, petroleum, petrochemical, corrosive media
certificate
