Stainless steel threaded ball valve ITEM 434
Fluid range: food industry
Installation dimensions: connection standard: DIN 11851; valve head standard: ISO 5211
Certification: Meets 97/23 EC “PED” certification; provides explosion-proof valves that comply with 94/9/EC
Two links, DN10~DN100, maximum PN100
Working temperature: -20 ° C to +160 ° C

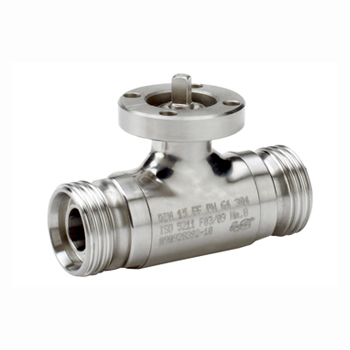

Externally threaded ball valve
Stainless steel AISI 304 material for the food industry
Note:
Sealable optional: PTFE + fiberglass
PTFE + carbon graphite
High molecular weight polyethylene
Single-acting valves are installed in the normally closed position when they are shipped from the factory. If other positions are required, please specify.
Ontology form
ITEM 434
Nominal dia
meter
3/8”~4” (DN10~DN100)
Nominal pressure
PN25-PN40-PN63
Operating temperature
-20 ° C to +160 ° C
Connection method
Thread
Body material
Stainless steel AISI 304 1.4301 UNI X5CrNi 18 10
Core material
Stainless steel AISI 304 1.4301 UNI X5CrNi 18 10
Sealing material
Fluororubber FKM, polytetrafluoroethylene PTFE

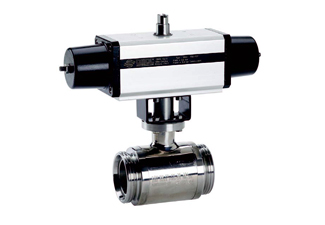

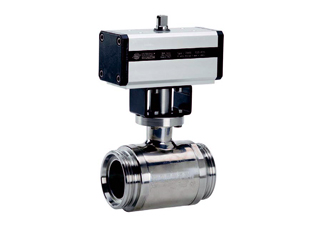

Executive agency
Standard DA series: double acting fork type pneumatic actuator
Standard SR Series: Single Action Type Fork Actuator
Fluid range
Air, water, gas, petroleum, petrochemical, corrosive media
certificate
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
Contact: Peng gong
Q Q: 2030185432
Mobile: 18918462396(WeChat same number - 24 hours service)
Landline: 021-59718851
E-mail :kunage@126.com
