OMAL

  • OMAL Omar, Italy Brass ball valve ITEM 100/101
  • OMAL Omar, Italy Brass ball valve ITEM 100/101
  • OMAL Omar, Italy Brass ball valve ITEM 100/101
  • OMAL Omar, Italy Brass ball valve ITEM 100/101
OMAL Omar, Italy Brass ball valve ITEM 100/101OMAL Omar, Italy Brass ball valve ITEM 100/101OMAL Omar, Italy Brass ball valve ITEM 100/101OMAL Omar, Italy Brass ball valve ITEM 100/101

OMAL Omar, Italy Brass ball valve ITEM 100/101

  • OMAL Italy Omar Ball Valve Butterfly Valve Angle Seat Valve Pneumatic Shuttle Valve Low Temperature Valve Pneumatic Actuator Electric Actuator
  • Omar omal mainly supplies pure imported valves and actuators for petrochemical, metallurgical, water, power, pharmaceutical and other industry giants.
  • OMAL S.P.A, a self-control valve company in Italy, has always adhered to the principle of sustainable development, the principle of pursuing quality and continuous innovation.
  • Product description: OMAL product Italy Omar ball valve butterfly valve seat valve pneumatic shuttle valve low temperature valve pneumatic actuator electric actuator, OMAL Omar is mainly for petrochemical, metallurgy, wat
  • INQUIRY

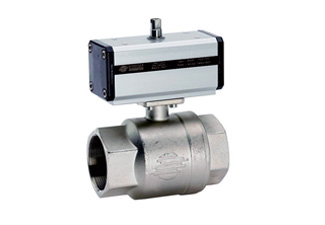

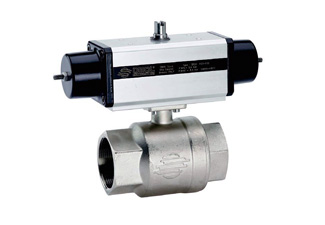

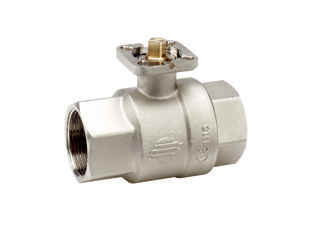

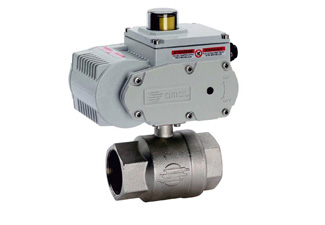

Brass full diameter ball valve ITEM 100/101

Fluid range: water, oil, gas and light media

Mounting dimensions: thread standard: UNI/ISO 7/1 Rp; connection standard: ISO 5211

Certification: in accordance with 97/23 EC “PED”

Two links, DN10~DN80, maximum 64bar
Working temperature: -20 ° C to +150 ° C
Valve shaft double Teflon seal
The body surface is nickel plated
Suitable for non-corrosive fluid media
Note:
The ITEM 101 2-way full-diameter threaded ball valve is available in a self-cleaning contour seal version for use with dirty liquids or solid particles.
Single-acting valves are installed in the normally closed position when they are shipped from the factory. If other positions are required, please specify.
