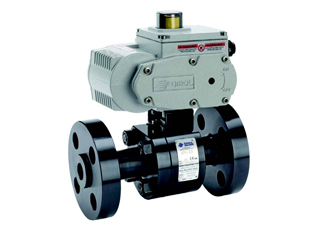

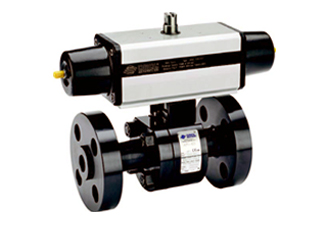

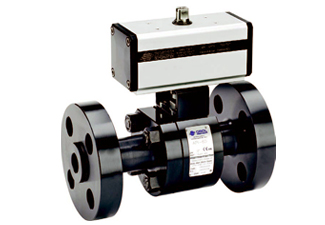

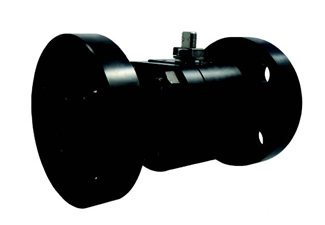

Carbon steel split ball valve PN63-100

Fluid range: air, water, natural gas, petroleum and petrochemical products

Installation size: the connection standard with the actuator is ISO 5211

Certificate: in line with EU pressure directive: 97/23 EC PED; emission standard: UNI EN ISO 15848:2006; valve shaft sealing conforms to: TA-LUFT VDI 2440 (2000); fire certification meets: UNI EN ISO 10497:2004- API6FA: 1999; Optional: Explosion-proof certificate ATEX 94/9 CE

Based on API certification standards (safety protection for petroleum, petrochemical and natural gas industries), OMAL Omar has continuously improved the original ball valve and launched
THOR series ball valve. This series of valves has been improved in terms of structure and sealing material, making the valve more suitable for the petrochemical industry.
* Anti-static device
* Fire protection design
* Valve shaft seal with double anti-friction washer + O-ring + 3 V-type seal
* Seat seal with TFM1600 (modified PTFE), DEVLON (for high pressure)
* Can be insulated jacket, valve shaft lengthened 100mm
* EU PED, environmental TA-LUFT, anti-corrosion NACE (carbon steel series), API 6D (American standard series), ENISO15848 fire protection, ATEX explosion-proof certification

* Suitable for air, water, gas, petroleum and petrochemical products
