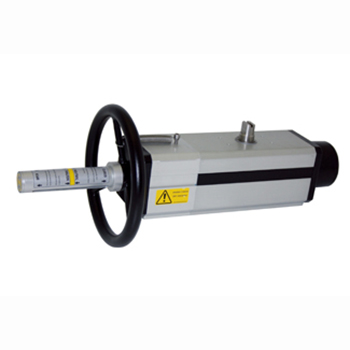

Integrated handwheel pneumatic actuator
Application: Multi-industry applications
Installation size: according to ISO 5211, F03-F05-F07-F10-F12
Certification: ATEX 94/9/EC; SIL3 (ICE61508); GOST-R; UKR
The conventional hand wheel actuator generally installs the hand wheel mechanism between the valve and the actuator through a connecting piece to achieve an emergency braking function, but a plurality of connecting members place high demands on processing and mounting accuracy.
OMAL's innovative approach is to integrate the handwheel mechanism on the actuator, eliminating the need for two upper and lower connectors, making the structure more compact and reasonable, ensuring smooth operation, high precision and easy installation.
Features:
Pneumatic actuators can be configured with a manual emergency handwheel as required.
The unit can be integrated on single and double acting pneumatic actuators.
In order to ensure the proper operation of the pneumatic actuator, the air supply of the pneumatic actuator must be disconnected before any manual operation is performed manually.
The transmission torque of the manual emergency handwheel acting on the pneumatic actuator is in accordance with UNI EN 12570-2001.
The torque output by the handwheel is equal to the rated torque of the pneumatic actuator.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
