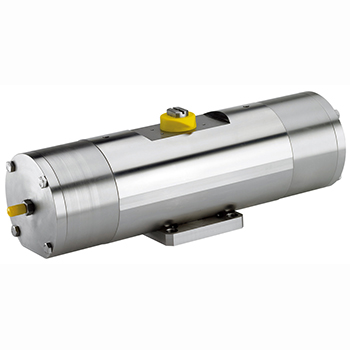

Stainless steel forging shape SR series

Torque: 360Nm-960Nm
Mounting flange: in accordance with DIN/ISO 5211 DIN 3337
F10 - F12 - F14 - F16 standard
Rotation angle 90°
Certification: in accordance with ATEX Directive 94/9/EC

Stainless steel pneumatic actuator cylinders are available in cast (CF8M) and forged (F316).
The internal structure is identical to the standard pneumatic actuator. Wear-resistant, corrosion-resistant and superior sealing performance.
Long service life for corrosive environments.
Technical characteristics
Torque: 360Nm - 960Nm.
The mounting flange is DIN/ISO 5211 DIN 3337; F10 - F12 - F14 - F16.
The rotation angle is 90°.
Torque: The return torque depends on the spring action and is independent of the supply pressure. Available in 4 different spring sizes.
From the SR30, it can be directly connected to the NAMUR standard solenoid valve.
The SR15 can be connected to a NAMUR board.
Explosion-proof according to user requirements, in line with ATEX9419/EC certification.
Working conditions
Working temperature: -20 ° C ~ +80 ° C.
Air source pressure: standard 5.6 bar; maximum 8.4 bar.
Working medium: Do not use detergent oil or lubricating oil compatible with NBR in the case of lubricating air.
