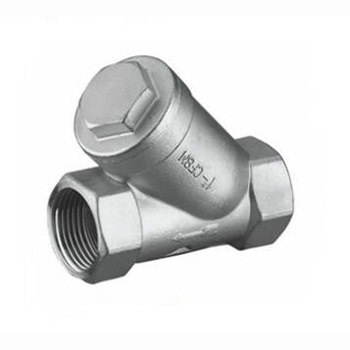

Name: Imported thread Y-type
filter Model:
Regus Caliber: DN15-50 Pressure: 0.6-6.4MPa Material: WCB, 304, 316
British
Regus Regus imported thread Y
filter
Y-type
filter is an indispensable
filter device for conveying medium. Y-type
filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium. To protect the normal use of valves and equipment. Y-type
filter has the characteristics of advanced structure, low resistance and convenient sewage discharge. The Y-type
filter is suitable for water, oil and gas. The general water network is 18~30 mesh, the ventilation net is 10~100 mesh, and the oil net is 100~480 mesh. The basket
filter is mainly composed of a nozzle, a main pipe, a
filter blue, a flange, a flange cover and a fastener. When the liquid enters the
filter blue through the main pipe, the solid foreign particles are blocked in the
filter blue, and the clean fluid passes through the
filter blue and is discharged from the
filter outlet.
British
Regus Regus imported thread Y-type
filter definition
The filter is a small device that removes a small amount of solid particles from the liquid, which protects the normal operation of the device. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is required, the detachable filter cartridge can be taken out and reloaded after processing, so that it is extremely convenient to use and maintain. Y-type filter, also known as decontamination device and filter valve, is an indispensable device for conveying medium piping system. Its function is to filter mechanical impurities in the medium, which can be used for rust, sand and small solids in liquid. Filtration of particles and the like to protect the fittings on the equipment piping from abrasion and clogging can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is filtered. The outlet of the device is discharged. When cleaning is required, the detachable filter cartridge can be taken out and refilled after processing. Therefore, it is extremely convenient to use and maintain.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
