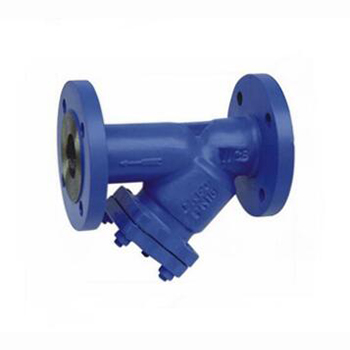

Name: Imported Y-type
filter Model:
Regus Caliber: DN15-50 Pressure: 0.6-6.4MPa Material: WCB, 304, 316
British
Regus Regus imported Y-type
filter
Y-type
filter is an indispensable
filter device for conveying medium. Y-type
filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium. To protect the normal use of valves and equipment. Y-type
filter has the characteristics of advanced structure, low resistance and convenient sewage discharge. The Y-type
filter is suitable for water, oil and gas. The general water network is 18~30 mesh, the ventilation net is 10~100 mesh, and the oil net is 100~480 mesh. The basket
filter is mainly composed of a nozzle, a main pipe, a
filter blue, a flange, a flange cover and a fastener. When the liquid enters the
filter blue through the main pipe, the solid foreign particles are blocked in the
filter blue, and the clean fluid passes through the
filter blue and is discharged from the
filter outlet.
British
Regus Regus imported Y-type
filter definition
Y-type
filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the
filter cartridge with a certain size
filter, its impurities are blocked, and the clean filtrate is
filtered by the
filter. Discharge, when cleaning is required, just remove the detachable
filter cartridge, re-load it after processing, so it is very convenient to use and maintain. Y-type
filter, also known as decontamination device and
filter valve, is an indispensable device for conveying medium piping system. Its function is to
filter mechanical impurities in the medium, which can be used for rust, sand and small solids in liquid. Filtration of particles and the like to protect the fittings on the equipment piping from wear and blockage protects the normal operation of the equipment.
The Y-type filter is Y-shaped. One end is for passing water such as water, and one end is sediment waste and impurities. Usually it is installed at the inlet end of a pressure reducing valve, a pressure relief valve, a fixed water level valve or other equipment. The function is to remove impurities in the water to protect the normal operation of the valve and equipment. The water to be treated by the filter enters the body through the water inlet, and impurities in the water are deposited on the stainless steel filter screen, thereby generating a pressure difference. The differential pressure switch monitors the pressure difference between the inlet and outlet. When the differential pressure reaches the set value, the electric controller sends the hydraulic control valve and drives the motor signal, triggering the following actions: the motor drives the brush to rotate, the filter is cleaned, and the control valve opens. For the sewage discharge, the entire cleaning process only lasts for several tens of seconds. When the cleaning is finished, the control valve is closed, the motor stops rotating, the system returns to its initial state, and the next filtration process begins. After the equipment is installed, the technician will debug and set the filtration time and cleaning conversion time. The water to be treated enters the body through the water inlet, and the filter starts to work normally.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
