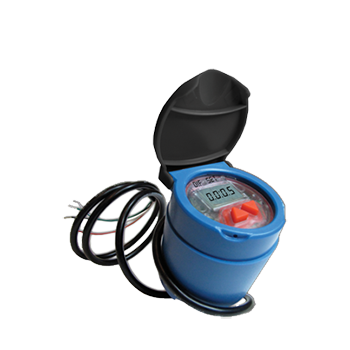

G75-DLS | Digital level switch
Operating temp: -10° to 60°C (no freezing)
Mechanical: Outdoor UV protection
Power supply: 6-24V DC or 12-24V AC
Mounting bracket: Optional

Mechanical
• Operating temperature : -10ºC to 60ºC
(no freezing)
• Outdoor UV protection
• Front panel cover protection
Electrical
• Power supply : 6-24V DC or 12-24V AC
• RED + BLK power supply
• GRN / WHT N.O contact
• Low power detect
• Dry contact (N.O) 0.5A at 24V AC
• Internal memory to retain "set-up data" at
power down.
Mounting
• 2" (52mm) diameter
• 2ft (60cm) 4 wires cable
• Pressure ports 1/8" BSP/NPT (male)
• High pressure port is marked by the letter "H"
on the housing
• Connect the water tank to the "H" port only
Software See 'Programming key features' table
Display
• The LCD display shows the water level above
the DLS mounting place
• "ON" is displayed when the switch contacts are
closed
Display resolution :
• 10 cm in a range of 0.0 - 70.0m
• 0.01 bar in the range 0.0 - 7 bar
Standard protection class • Dust and watertight
• IP66
