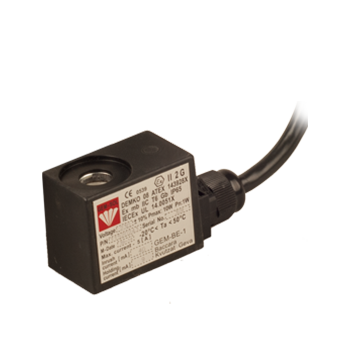

GEM-BE | Explosion proof Coil
Coil winding insulation: H 180°C
Assembly: In any position
Fixing:  One nut G1/4″ hexagonal 19mm

Protection type
II 2 G Ex mb IIC T6 Gb IP65 :
• II : Equipment group : All hazardous areas
except mining.
• 2 G (zone 1) : An area in which an explosive
mixture is likely to occur in normal
operation.
Zone 1 : likely to/can exist under normal
operating conditions (include zone 2).
• mb : Type of protection for electrical
apparatus :
Encapsulation for use in zones 1 & 2.
• IIC : Gas groups Acc. IEC, CENELEC and
NEC 505.
Typical gas : Hydrogen
• T6 : Maximum surface temperature : 85ºC
• Gb : Equipment Protection Level : Gas
atmospheres, "high" level of protection.
• IP65 : Ingress Protection level
Coil winding insulation Class H (180ºC)
Standard / Certification
DEMKO 08 ATEX 143928X
EN 60079-0 : 2012 + A11 : 2013
EN 60079-18 : 2009
Directive 94/9/EC
IECEx UL 14.0051X
IEC 60079-0 : 2011 Edition 6.0
IEC 60079-18 : 2009 Edition 3
Coil duty cycle 100%
Electrical connection PVC cable with 18 AWG (0.75 mm2
) conductors
Assembly In any position, fixing with G1/4" hexagonal nut
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
