BACCARA

  • BACCARA Israel GEM-C | Chem-Sol 1/4′′ 2W NC, NO
BACCARA Israel GEM-C | Chem-Sol 1/4′′ 2W NC, NO

BACCARA Israel GEM-C | Chem-Sol 1/4′′ 2W NC, NO

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: GEM-C | Chem-Sol 1/4′′ 2W NC, NO BACCARA product Israel Solenoid Valve Fertilizing Solenoid Valve Hydraulic Drive Valve BACCARA Controller Cylinder Air Valve BACCARA Globe Valve
  • INQUIRY

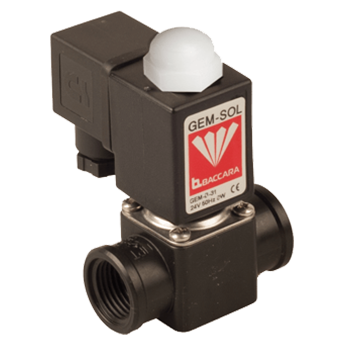

GEM-C | Chem-Sol 1/2″ 2W NC
Ports size: 1/2″ BSP, NPT
Orifice size: 8.0 mm
Manual override: Plastic
Body material: Plastic

Function 2 Way NC
Ports size 1/2" BSP & NPT
Orifice size 8mm
Pressure range See table
Kv (l/min) 18 l/min
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic
Main Valve:
PVC
Seals:
FPM (Viton®), EPDM
Applications
• Chemical process
• Water treatment
• Analysis device etc
Coil voltage
• Voltage and power consumption - see table
• All Baccara coil voltages are from
-5% to ±10% of nominal
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP coil)
