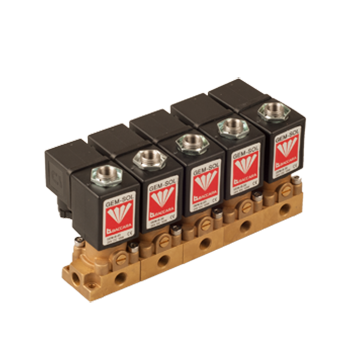

GEM-V/VL | Modular Manifold Installation
Ports size: 1/8″ BSP, NPT
Orifice size: 0.8 – 2.4 mm
Manual override: Plastic, Slot, Knob, Push, Push lock
Body material: Mazak, Brass
Function 2 Way, 3 Way NC, NO
Pressure range
• See table
• Valves for pressure higher than 25 bar
cannot be supplied with manual override.
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Mounting
Vertical, on sub-base, 2 screws M4.
Any number of valves on the same sub-base
plate. Any combination of 2/2, 3 Way NC or NO
valves may be grouped together.
* Standard valve orientation : Manual override
and base port on the same side
Materials in contact
with media
Manual override:
Plastic, Brass screw or finger knob.
NOa* - manual override is not available.
*pressure is supplied through the base
Main Valve:
Mazak, Brass
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Media Air, water, oil
Coil voltage • Voltage and power consumption - see table
• All Baccara
coil voltages are ± 10% of nominal
Standard / Certification
• UL 429
* Available on selected models only.
Please contact our technical sales
department for details.
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
