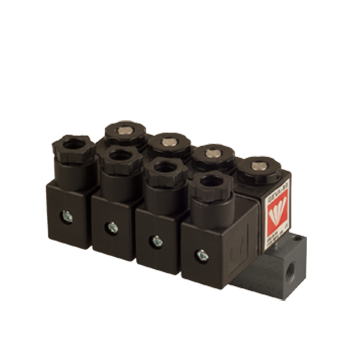

G80-M | Manifold
Ports size: 1/8″ BSP, NPT, M5, #10UNF
Orifice size: 1.2, 1.6 mm
Body material: Aluminium, Brass, St. St

Function 2 Way, 3 Way NC
Orifice size See table
Ports size 1/8" BSP & NPT, M5, #10UNF
Pressure range See table
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Mounting
Coil can be mounted in 2 positions at 180º
apart and the coil plug can rotate to
2 positions at 180º.
Materials in contact
with media
Main Valve:
Aluminium, Stainless Steel AISI 316, Brass
Solenoid Operator:
Stainless Steel AISI 300 & 400 series, Brass
Seals:
NBR, FPM (Viton®), EPDM, FFKM (Kalrez®)
Media Air, water, oil
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65 with connector
