  • BACCARA Israel G80-A | 3W NC, NO
BACCARA Israel G80-A | 3W NC, NO

BACCARA Israel G80-A | 3W NC, NO

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: G80-A | 3W NC, NO BACCARA product Israel Solenoid Valve Fertilization Solenoid Valve Hydraulic Drive Valve BACCARA Controller Cylinder Air Valve BACCARA Globe Valve
  • INQUIRY

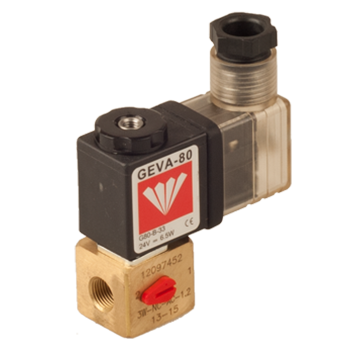

G80-A | 3W NC, NO
Ports size: 1/8″ BSP, NPT, M5, #10UNF
Orifice size: 1.0 – 1.6 mm
Manual override:  Plastic
Body material: Aluminium, Brass, St.St

Function 3 Way NC, NO
Ports size 1/8" BSP, NPT, M5, #10UNF
Orifice size See table
Pressure range
• See table
• Valves for pressure higher than 12 bar
cannot be supplied with manual override
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override*:
Plastic
* Maximum pressure : 16 bar
Main Valve:
Aluminium, Stainless Steel AISI 316, Brass
Solenoid Operator
Stainless Steel AISI 300 & 400 series, Brass
Seals:
NBR, FPM (Viton®), EPDM
Media Air, water, oil
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65 with connector
