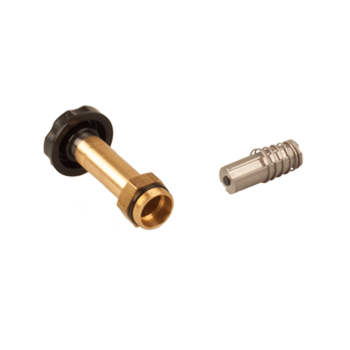

G80-OL | Latch Operator 2W, 3W NC, NO
Orifice size: 1.0 – 1.6 mm
Tube Material: Brass, St.St

Assembly:  Fix the coil with one M8 nut.  Max. tightening torque: 2 N/m.

Function 2 Way, 3 Way NC, NO
Orifice size 1, 1.2, 1.6mm
Pressure range (bars) See solenoid valve performances
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Response time 5 to 12 ms
Materials in contact
with media
Operator:
Brass or Stainless Steel AISI 300 & 400 series
Orifice:
Stainless Steel
Spring:
Stainless Steel AISI 300 series
Media Air, inert gases, water*
Threads on operator
tube
M8x0.75 male and M5 or #10UNF female to
connect exhaust, muffler etc.
Operator assembly
Insert operator into cavity, tighten it by the
flange and the two M3 screws. Fix the coil
with one M8 nut.
Max. tightening torque : 2 N/m
Coil fixing On a G80 operator with M8x0.75 nut
Coil data See technical G80 coil & wide coil data
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ±10% of nominal
Operation • Compatible with all G80 valves at 12 and
24V DC. Use "L" as the power indicator
