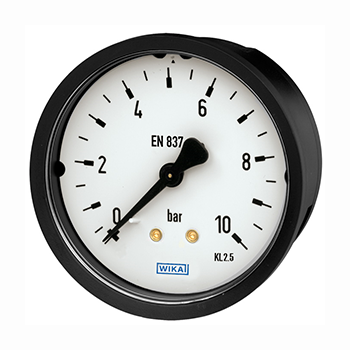

Model 111.16, 111.26
Bourdon tube pressure gauge, copper alloy
Panel mounting series
application
Suitable for gas and liquid media that are not highly viscous or crystallizable and do not attack copper alloy parts
Pneumatic device
Heating and air conditioning technology
Small capacity compressor
Medical engineering
Functional characteristics
Particularly suitable for panel mounting
Reliable and cost effective
Designed to EN 837-1
Standard sizes: 40, 50 and 63mm
Measuring range: up to 0 ... 40 MPa
description
design
Conforms to EN 837-1
Standard size (mm)
40, 50 and 63
level of accuracy
2.5
Range
0 ... 0.06 to 0 ... 40 MPa
Or all other equal negative pressure ranges or positive and negative pressure connections
Pressure limit
Stability: 3/4 x full scale value
Volatility: 2/3 x full scale value
Overvoltage protection: full scale value
Allowable temperature
Ambient temperature: -20 ... +60°C
Medium temperature: up to +60 ° C
Temperature influence
When the temperature of the measuring system fluctuates around the reference temperature (+20 °C), the maximum change is ±0.4 %/10 K of the range
