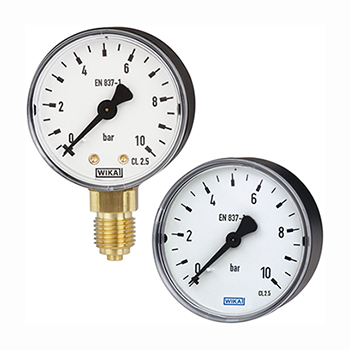

Model 111.10, 111.12
Bourdon tube pressure gauge, copper alloy
Axial mounting, standard

application

Suitable for gas and liquid media that are not highly viscous or crystallizable and do not attack copper alloy parts
Pneumatic device
Heating and air conditioning technology
Medical engineering
Functional characteristics

Reliable and cost effective
Designed to EN 837-1
Standard sizes: 40, 50, 63, 80, 100 and 160 mm
Range: up to 0 ... 40 MPa
description

Type 111 pressure gauge with proven Bourdon tube measurement system. When pressurized, the deflection of the Bourdon tube is proportional to the incident pressure and is transmitted to the transmission core through the link.

The modular design allows for a variety of combinations of case materials, process connections, dial sizes and ranges. With its versatility, the gauge is suitable for a wide range of industrial applications.

When installed on the control panel, the pressure gauge can be equipped with a surface mount flange or a triangular stop and mounting bracket. (depending on the process connection)

Every year, millions of standard version 111 pressure gauges are produced on cost-optimized modern production lines.
