YPC product Korea YSC, YSF, YSK Model Accessories Cartridge Valve Pneumatic Valve Mechanical Valve Mounting Valve Cylinder Solenoid Valve

Model name Action mode Effective cross-sectional area Take-up caliber Use pressure Download information
2D 3D PDF
HLV300 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 13.5mm2 1/8 0.8Mpa
HLV400 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 18.0mm2 1/4 0.8Mpa
HLV500 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 36.0mm2 3/8 0.8Mpa
HLV600 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 90.0mm2 1/2 0.8Mpa
HLV700 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 90.0mm2 3/4 0.8Mpa
HLV460 two single control, two double control 18.0mm2 1/8 0.8Mpa
HLV560 two single control, two double control 36.0mm2 3/8 0.8Mpa

Model name Action mode Effective cross-sectional area Take-up caliber Use pressure Download information
2D 3D PDF
HLV300-V two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 13.5mm2 1/8 0.8Mpa
HLV400-V two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 18.0mm2 1/4 0.8Mpa
HLV500-V two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 36.0mm2 3/8 0.8Mpa
HLV460-V two single control, two double control 18.0mm2 1/8 0.8Mpa
HLV560-V two single control, two double control 36.0mm2 3/8 0.8Mpa

Model name Action mode Effective cross-sectional area Take-up caliber Use pressure Download information
2D 3D PDF
TMV210 two-position dual control 9.0mm2 1/8 0.8Mpa
TMV210-P two-position dual control 9.0mm2 1/8 0.8Mpa
TMV210-PP two-position dual control 9.0mm2 1/8 0.8Mpa
TMV410 two-position dual control 18.0mm2 1/4 0.8Mpa
TMV410-P two-position dual control 18.0mm2 1/4 0.8Mpa
TMV410-PP two-position dual control 18.0mm2 1/4 0.8Mpa
TMV260 two-position dual control 9.0mm2 1/8 0.8Mpa
TMV260-P two-position dual control 9.0mm2 1/8 0.8Mpa
TMV260-PP two-position dual control 9.0mm2 1/8 0.8Mpa
TMV460 two double control 18.0mm2 1/4 0.8Mpa
TMV460-P two-position dual control 18.0mm2 1/4 0.8Mpa
TMV460-PP two double control 18.0mm2 1/4 0.8Mpa

Model name Action mode Effective cross-sectional area Take-up caliber Use pressure Download information
2D 3D PDF
KMV310-S two-position dual control 13.5mm2 1/8 0.8Mpa
KMV310-D two-position dual control 13.5mm2 1/8 0.8Mpa
KMV310-S-P two-position dual control 13.5mm2 1/8 0.8Mpa
KMV310-D-P two-position dual control 13.5mm2 1/8 0.8Mpa
KMV410-S two-position dual control 18.0mm2 1/4 0.8Mpa
KMV410-D two-position dual control 18.0mm2 1/4 0.8Mpa
KMV410-S-P two double control 18.0mm2 1/4 0.8Mpa
KMV410-D-P two-position dual control 18.0mm2 1/4 0.8Mpa
KMV460-S two-position dual control 18.0mm2 1/4 0.8Mpa
KMV460-S-P two double control 18.0mm2 1/4 0.8Mpa
KMV460-D-P two-position dual control 18.0mm2 1/4 0.8Mpa

Model name Action mode Effective cross-sectional area Take-up caliber Use pressure Download information
2D 3D PDF
FT410 two-position dual control 18.0mm2 1/4 0.8Mpa
FT510 two-position dual control 18.0mm2 3/8 0.8Mpa
FT600 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 18.0mm2 1/2 1Mpa
FT700 two-position single control, two-position dual control, three-position Close Center, Exhaust Center, Pressure Center 90.0mm2 3/4 1Mpa 도면 2D DWG 다운로드 도면 3D STEP 다운로드

Model name Action mode Effective cross-sectional area Take-up caliber Use pressure Download information
2D 3D PDF
YVH230-08 Three-position Close Center M34*1.5 1/4 1Mpa
YVH230-08-L Three-position Close Center M34*1.5 1/4 1Mpa
YVH330-10 Three-position Close Center M40*1.6 3/8 1Mpa
YVH330-10-L Three-position Close Center M40*1.6 3/8 1Mpa
YVH430-15 Three-position Close Center M40*1.6 1/2, 3/4 1Mpa
YVH430-15-L three-position Close Center M52*1.7 1/2, 3/4 1Mpa

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.

Contact: Peng gong
Q Q: 2030185432
Mobile: 18918462396(WeChat same number - 24 hours service)
Landline: 021-59718851
E-mail :kunage@126.com

YPC

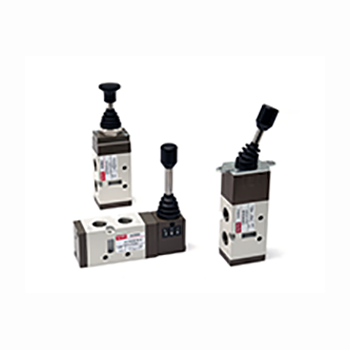

YPC Korea HLV, TMV, KMV Model
