Nominal Diameter () Valve Position Function of Code Type

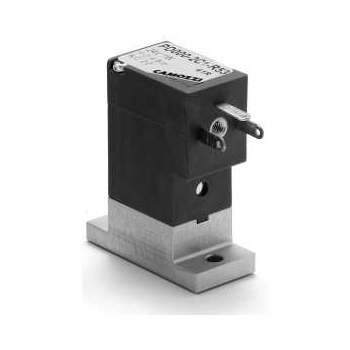

PD000-2C1-R51 Direct-acting solenoid valve 0,82/2NC
PD000-2C1-R53 Direct-acting solenoid valve 0,82/2NC
PD000-2C2-R52 Direct-acting solenoid valve 1,2/2 NC
PD000-2C2-R55 direct-acting solenoid valve 1,22/2NC
PD000-2C3-R52 Direct-acting solenoid valve 1,62/2 NC
PD000-2C3-R55 direct-acting solenoid valve 1,62/2 NC
PD000-2C4-R58 Direct-acting solenoid valve 22/2NC
PD000-2C5-R58 Direct-acting solenoid valve 2,52/2NC

Aerodynamic parameters
Valve position function
Operation mode
Installation mode
Nominal diameter
Nominal flow
Kv (l/min)
Working pressure
working temperature
medium
response time
Installation position 2-bit two-way, normally closed [NC]
Cut-off Form
Screw mounted on valve plate or M5 threaded interface
0.8... 2.5 mm
25... 125 Nl/min
0.39... One point nine three
- 0.9 4... 12 bar
0+50 degree C
Filtered compressed air (filter accuracy level conforms to ISO 8573-15.4.4) or inert gas
Open < 10 ms, close < 15 ms
Arbitrarily

Material in contact with media
valve body
Sealing element
Brass, Anodic Alumina Alloy for Internal Parts
NBR (FKM can be provided as required)
Stainless steel

Electrical parameters
Voltage
Voltage tolerance
Power consumption
Work cycle
Electrical connection
Protection level 24 V DC - 12 V DC (other voltage can be provided as required)
1/2 W+10%-4 W+5%
1... 4 W
ED 100% (1W - 2W) or ED 50% (4W), please refer to the "Work Cycle Factor" list for relevant information.
Socket (DIN 43650 standard, pin spacing 9.4 mm)
IP65 (with socket)

Special types of products can be customized as required

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
