Code Type Interface Valve Position Function Flow () Structure Form

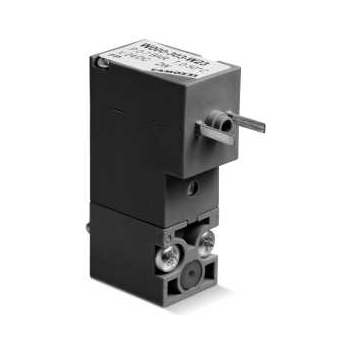

W000-405-W23 direct-acting solenoid valve M5 3/2NO 25 cut-off type
W000-403-W23 direct-acting solenoid valve M5 3/2NO 35 cut-off type
W000-405-W24 direct-acting solenoid valve M5 3/2NO 25 cut-off type
W000-403-W24 direct-acting solenoid valve M5 3/2NO 35 cut-off type
W000-605-W23 direct-acting solenoid valve M5 3/2NO 25 cut-off type
W000-603-W23 direct-acting solenoid valve M5 3/2NO 35 cut-off type
W000-605-W24 direct-acting solenoid valve M5 3/2NO 25 cut-off type
W000-603-W24 direct-acting solenoid valve M5 3/2NO 35 cut-off type

Aerodynamic parameters
Valve position function
Operation mode
Installation mode
Nominal diameter
Nominal flow
Kv (l/min)
Working pressure
working temperature
medium
Response time (ISO 12238)
Manual control device
Installation position: two-position tee, normally closed [NC]
Cut-off Form
Install the valve plate with screw, and the installation surface of the valve plate conforms to ISO 15218 standard.
0.8... 1.5 mm
14... 35 Nl/min (aria @ 6 bar P 1 bar)
0.22... Zero point five four
0 5... 10 bar
0+50 degree C
Filtered compressed air (filter accuracy level conforms to ISO 8573-15.4.4) or inert gas
Open < 10 ms, close < 15 ms
Monostable button type
Arbitrarily

Material in contact with media
valve body
Sealing element
Engineering Plastics for Internal Parts
PU, NBR (Fluororubber can be supplied as required)
Stainless steel

Electrical parameters
Voltage
Voltage tolerance
Power consumption
Work cycle
Electrical connection
Protection level 12 V DC - 24 V DC - 48 V DC
+ 10%
2W - 1W (only 24 V DC)
100% continuous work
Socket (DIN 43650, Class C, 8 mm)
IP65 (with socket)

Special types of products can be customized as required
