Code type material (matrix) valve position functional structure form flow ()

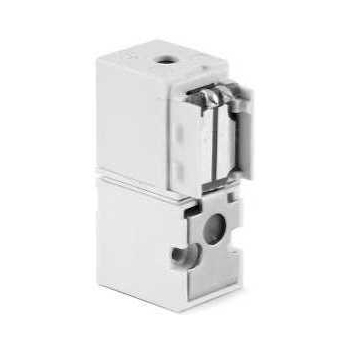

KN000-303-KY3N Direct-acting Solenoid Valve PBT Engineering Plastic 3/2 NC Cut-off 10

Aerodynamic parameters
Valve position function
Operation mode
Installation mode
Nominal diameter
Nominal flow
Kv (l/min)
Working pressure
working temperature
medium
Response time (ISO 12238)
Manual control device
Installation position: two-position tee, normally closed [NC]
Cut-off Form
Install the valve plate with screw, and the installation surface of the valve plate conforms to ISO 15218 standard.
0.65 mm
10 Nl/min
Zero point one five
0_7 bar
0+50 degree C
Filtered compressed air (filter accuracy level conforms to ISO 8573-13.4.3) or inert gas
Open < 10 ms, close < 10 ms
Monostable button type arbitrary

Material in contact with media
valve body
Sealing element
Engineering Plastics for Internal Parts
HNBR, NBR (Fluororubber can be supplied as required)
Stainless steel

Electrical parameters
Voltage
Voltage tolerance
Power consumption
Work cycle
Electrical connection
Protection level 24 V DC - 12 V DC (other voltage can be provided as required)
+ 10%
1.3 W (absorption), 0.25 W (retention)
100% continuous work
Socket
IP50

Special types of products can be customized as required
