  • K8 Series Direct-acting Miniature Solenoid Valve Two-way and Two-way Three-way Solenoid Valves

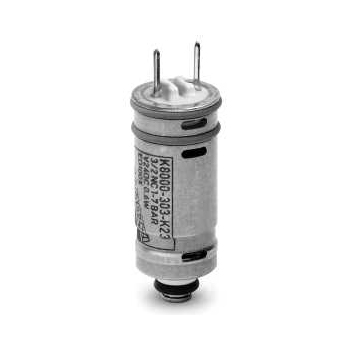

K8 Series Direct-acting Miniature Solenoid Valve Two-way and Two-way Three-way Solenoid Valves

K8 Series Direct-acting Miniature Solenoid Valve Two-way and Two-way Three-way Solenoid Valves

  • Italian camozz solenoid valve Kangmaosheng solenoid valve
  • Quotation for Selected Products with One Compensation for 10 Fake Products Imported from Foreign Countries with Original Authentic Products
  • Italian Camozzi products are widely used in light industry, textile, printing and dyeing, food, packaging, printing, rubber and plastics, chemical industry, electronics, automotive and mechanical equi
  • Camozzi Kangmaosheng mainly manufactures pneumatic actuator, pneumatic control element, gas source treatment device, pneumatic auxiliary element, vacuum element and so on.
  • Product description: Camozzi proxy cylinder Camozzi claw clamp Camozzi magnetic proximity switch Camozzi solenoid valve Camozzi pneumatic control valve Camozzi manual control valve Camozzi vacuum switch Camozzi valve isla
  • INQUIRY
Code Type Working Mode Structure Form Valve Position Function Flow Rate Nominal Diameter
K8000-303-K21 Direct-acting Solenoid Valve Direct-acting Cut-off Type 3/2 NC 5 0,5
K8000-403-K21 Direct-acting solenoid valve Direct-acting cut-off type 3/2 NO 5 0,5
K8000-503-K21 Direct-acting solenoid valve Direct-acting cut-off 2/2 NC 5 0,5
K8000-303-K22 Direct-acting Solenoid Valve Direct-acting Cut-off Type 3/2 NC 5 0,5
K8000-403-K22 Direct-acting Solenoid Valve Direct-acting Cut-off Type 3/2 NO 5 0,5
K8000-503-K22 Direct-acting solenoid valve Direct-acting cut-off 2/2 NC 5 0,5
K8000-303-K23 Direct-acting solenoid valve Direct-acting cut-off type 3/2 NC 5 0,5
K8000-403-K23 Direct-acting Solenoid Valve Direct-acting Cut-off Type 3/2 NO 5 0,5
K8000-503-K23 Direct-acting solenoid valve Direct-acting cut-off 2/2 NC 5 0,5

Aerodynamic parameters
Valve position function
Operation mode
Installation mode
Nominal diameter
Nominal flow
KV (l/min)
Working pressure
working temperature
medium
Response time (ISO 12238)
Installation position: two-way two-way, two-way three-way, normally closed [NC], often open [NO]
Cut-off Form
Cartridge assembly
0.5 mm - 0.7 mm
See Kv value
0.08 - 0.15
- 1_3... 7 bar
0_50 degrees C
Filtered compressed air (filter accuracy level conforms to ISO 8573-13.4.3) or inert gas
Open < 10 ms, close < 10 ms
Arbitrarily

Material in contact with media
valve body
Sealing element
Internal parts brass, stainless steel, engineering plastics
Fluororubber
Stainless steel

Electrical parameters
Voltage
Voltage tolerance
Power consumption
Work cycle
Electrical connection
Protection Level 24 V DC - 12 V DC - 6 V DC (Other Voltages Can be Provided as Required)
+ 10%
0.6 W
100% continuous work
Two pins (0.5x0.5), 4 mm apart
IP00

Special types of products can be customized as required.
