Habonim

  • Three-Piece Fixed Ball Valve 81/82/83 Series DN50-DN400

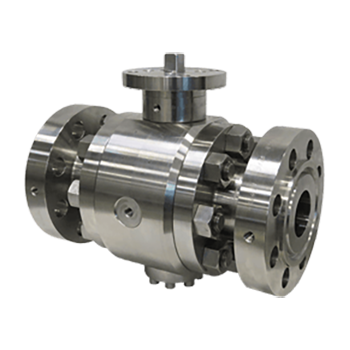

Three-Piece Fixed Ball Valve 81/82/83 Series DN50-DN400

Three-Piece Fixed Ball Valve 81/82/83 Series DN50-DN400

  • Habonim product products provide professional solutions for the most demanding industries
  • Oil, Gas, Chemical, Petrochemical, Pharmaceutical, Mining, Trunnion, Cryogenic, High Pressure
  • We create custom valves, manifolds and special solutions to meet the most stringent requirements of extreme temperature, high pressure, corrosive and abrasive applications
  • Product description: The Habonim trunnion mounted valve range is specifically designed to withstand the harsh conditions of the petroleum and petrochemical industries. Rugged design can withstand heavy loads imposed on va
  • INQUIRY
Technical overview
Size range 2" - 16" (DN50 - DN400)
Collection range Two piece design
Series 81 – Class 150/PN20
Series 82 - Class 300/PN50
Series 83 - Class 600/PN100
Three-lobed design
Series 91 - Class 150/PN20
Series 92 - Class 300/PN50
Series 93 - Class 600/PN100
Series 94 - Class 900/PN160
95 Series - Class 1500/PN250 (up to 12”)
Series 96 - Class 2500/PN400 (up to 8”)
Top Entry design
52 Series - Class 300/PN50 (1/2" up to 6")
Pressure Range Vacuum 10-6 Tor to 414 bar (6000 psi)
Temperature range -60 °C (-76 °F) to 260 °C (418 °F).
Material Carbon Steel A350 LF2, A105, A216 WCB, Stainless Steel 316/316L and more
Connection method Extended weld end, flanged
Compliance Standards
Factory Certification ISO 9001-2015 Quality Management System
Valve Design and Testing ANSI B16.34, API 6D / ISO 14313, ISO 17292 Valve Design
ANSI B16.25, EN12627-4 Butt Weld End Connections (Schedule 5, 10, 40, 80)
ANSI B16.5, EN 1092 Pt 1&2 Flange Dimensions
ANSI B16.10, EN 558 Face to Face Dimensions
NACE MR-0175, ISO 15156-1/2/3 Materials for use in oil and gas production environments, including H2S
EN 12266-1, API 598 Testing of Metallic Valves - Pressure Testing, Test Procedures and Acceptance Criteria.
API 607, ISO 10497, API 6FA Valve Testing - Fire Type Testing Requirements
ISO 15848-1 Industrial valves - Measurement, testing and qualification procedures for fugitive emissions
Certification PED 2014/68/EU Module H PED 2014/68/EU Module H
ATEX 2014/34/EU Equipment and protective systems for use in potentially explosive atmospheres (optional for actuators only) ((optional for actuators only))
IEC 61508-2 SIL 2/3 Safety Integrity Level - Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems ((Optional for Execution Units only)
Document EN 10204 2.2 / 3.1 / 3.2 Metallic materials - Types of inspection documents
