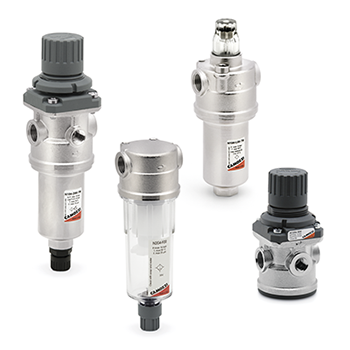

N series filters and coalescent filters

Interfaces G1/8, G1/4

N Series Pressure Reducer

Interface G1/8, G1/4 pipe connection

N Series Oil Mist

Interfaces G1/8, G1/4

N Series Vacuum Reducer/Filter Two-piece

Interfaces G1/8, G1/4

N Series Accessories

Code No. Type Interface Filter Precision (Condensate Discharge)
N108-F00 filter G1/8 25 semi-automatic drainage
N104-F00 filter G1/4 25 semi-automatic drainage
N208-F00 filter G1/8 25 semi-automatic drainage
N204-F00 filter G1/4 25 semi-automatic drainage
N108-F08 Filter G1/8 25 No Condensate Discharge
N104-F08 Filter G1/4 25 No Condensate Discharge
N208-F04 Filter G1/8 25 Pressure-reducing Drainage
N204-F04 Filter G1/4 25 Pressure-reducing Drainage
N108-F10 filter G1/8 5 semi-automatic drainage
N104-F10 filter G1/4 5 semi-automatic drainage
N208-F05 Filter G1/8 25 Protected Pressure-reducing Drainage
N204-F05 Filter G1/4 25 Protected Pressure-reducing Drainage
N108-F18 Filter G1/8 5 No Condensate Discharge
N104-F18 Filter G1/4 5 No Condensate Discharge
N208-F08 Filter G1/8 25 No Condensate Discharge
N204-F08 Filter G1/4 25 No Condensate Discharge
N108-FB0 coalescent filter G1/8 0,01 semi-automatic drainage
N104-FB0 coalescent filter G1/4 0,01 semi-automatic drainage
N208-F10 filter G1/8 5 semi-automatic drainage
N204-F10 filter G1/4 5 semi-automatic drainage
N108-FB8 Coalescent Filter G1/8 0,01 No Condensate Discharge
N104-FB8 Coalescent Filter G1/4 0,01 No Condensate Discharge
N208-FB8 Coalescent Filter G1/8 0,01 No Condensate Discharge
N204-F14 Filter G1/4 5 Pressure-reducing Drainage
N208-F14 Filter G1/8 5 Pressure-reducing Drainage
N204-F15 Filter G1/4 5 Protected Pressure-reducing Drainage
N208-F15 Filter G1/8 5 Protected Pressure-reducing Drainage
N204-F18 Filter G1/4 5 No Condensate Discharge
N208-F18 Filter G1/8 5 No Condensate Discharge
N204-FB0 coalescent filter G1/4 0,01 semi-automatic drainage
N208-FB0 coalescent filter G1/8 0,01 semi-automatic drainage
N204-FB4 coalescent filter G1/4 0,01 pressure-lowering drainage
N208-FB4 coalescent filter G1/8 0,01 pressure-reducing drainage
N204-FB5 Coalescent Filter G1/4 0,01 Protected Pressure-reducing Drainage
N208-FB5 Coalescent Filter G1/8 0,01 Protected Pressure-Reducing Drainage
N204-FB8 Coalescent Filter G1/4 0,01 No Condensate Discharge

Code number, type, interface, working pressure (function)
N1208-R00 Pressure Reducer G1/8 0,5_10 Overflow
N1204-R00 Pressure Reducer G1/4 0,5_10 Overflow
N1208-R01 Pressure Reducer G1/8 0,5_10 Non-overflow
N1204-R01 decompressor G1/4 0,5_10 non-overflow
N1208-R10 decompressor G1/8 0_4 overflow
N1204-R10 decompressor G1/4 0_4 overflow
N1208-R11 decompressor G1/8 0_4 non-overflow
N1204-R11 decompressor G1/4 0_4 non-overflow
N1208-R20 decompressor G1/8 0_2 overflow
N1204-R20 decompressor G1/4 0_2 overflow
N1208-R21 decompressor G1/8 0_2 non-overflow
N1204-R21 decompressor G1/4 0_2 non-overflow
N1208-R70 Pressure Reducer G1/8 0,5_7 Overflow
N1204-R70 Pressure Reducer G1/4 0,5_7 Overflow
N1208-R71 Pressure Reducer G1/8 0,5_7 Non-overflow
N1204-R71 Pressure Reducer G1/4 0,5_7 Non-overflow

Code number, type, interface
N108-L00 Oil Mist G1/8
N104-L00 Oil Mist G1/4
N208-L00 Oil Mist G1/8
N204-L00 Oil Mist G1/4

Code Type Interface Filter Precision (Condensate Discharge) Working Pressure (Function)
N108-D00 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0,5_10 Overflow
N104-D00 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0,5_10 Overflow
N208-D00 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0,5_10 Overflow
N204-D00 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0,5_10 Overflow
N108-D00-2 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_2 Overflow
N104-D00-2 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0_2 Overflow
N208-D00-2 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_2 Overflow
N204-D00-2 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0_2 Overflow
N108-D00-4 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_4 Overflow
N104-D00-4 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0_4 Overflow
N208-D00-4 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_4 Overflow
N204-D00-4 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0_4 Overflow
N108-D00-7 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0,5_7 Overflow
N104-D00-7 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0,5_7 Overflow
N208-D00-7 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0,5_7 Overflow
N204-D00-7 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0,5_7 Overflow
N108-D01 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0,5_10 Non-overflow
N104-D01 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0,5_10 Non-overflow
N208-D01 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0,5_10 Non-overflow
N204-D01 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0,5_10 Non-overflow
N108-D01-2 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_2 Non-overflow
N104-D01-2 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0_2 Non-overflow
N208-D01-2 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_2 Non-overflow
N204-D01-2 Pressure Reducer/Filter Two-piece G1/4 25 Semi-automatic Drainage 0_2 Non-overflow
N108-D01-4 Pressure Reducer/Filter Two-piece G1/8 25 Semi-automatic Drainage 0_4 Non-overflow
N104-D01-4 Pressure Reducer/Filter Two-piece G1/4 25.5

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
