Butterfly Ball Valve

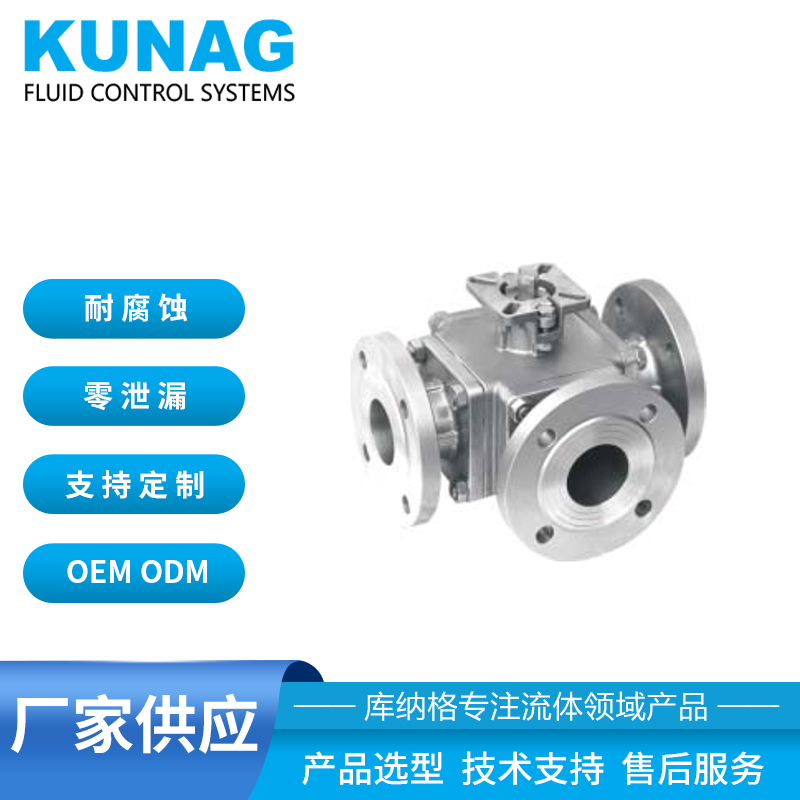

  • Three way four-way high platform low flat billiard valve American Standard German standard Japanese standard
Three way four-way high platform low flat billiard valve American Standard German standard Japanese standard

Three way four-way high platform low flat billiard valve American Standard German standard Japanese standard

  • Vision: kunag will become one of the leading global fluid control brands
  • Objective: kunag focuses on the field of fluid control and subsystem solutions
  • Fluid control equipment in the field of petrochemical technology and medical equipment
  • Product description: KUNAG is a company specializing in the research and development, production, customization and system integration of components in the field of fluid control. Its products mainly include corrosion-res
  • INQUIRY
Reduced port t port / L Port / X port, 1 / 2 "~ 6" (DN15 ~ DN150)
Working pressure W.P.: Class 150 / 300 PN16 / 40 10K
Working temperature W.T.: - 20 ~ 180 ℃
Investment casting
Blow out proof stem
Live loading design of double butterfly spring
Anti static device (option)
There are four seats
360 ° rotary handle
Locking device handle
ISO5211 direct mounting pad
Automation accessories (option)
American ANSI Class 150
Design standard desigr: ASME B16 34,API6O8,API6D
Flange dimension: ASME B16 five
Inspection & Testing: API 598

German standard DIN PN16
Design standard: en1983, en12516-1
Flange dimension: en1092-1 PN16 / 40
Inspection & Testing: en1226-1

Japanese Standard JIS 10K
Design standard: JIS b2071
Flange dimension: JIS b2220
Inspection & Testing: JIS b2003
