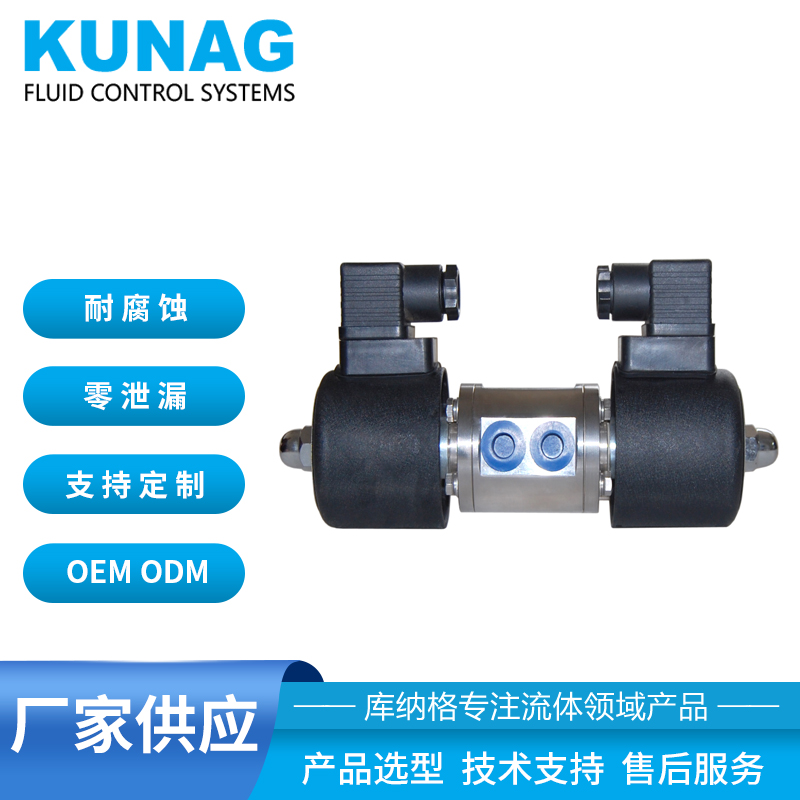

Three way solenoid valve

  • 1 in 2 out solenoid valve water gas oil ultra-low temperature ultra-high temperature corrosive flammable and explosive
1 in 2 out solenoid valve water gas oil ultra-low temperature ultra-high temperature corrosive flammable and explosive

1 in 2 out solenoid valve water gas oil ultra-low temperature ultra-high temperature corrosive flammable and explosive

  • Vision: kunag will become one of the leading global fluid control brands
  • Objective: kunag focuses on the field of fluid control and subsystem solutions
  • Fluid control equipment in the field of petrochemical technology and medical equipment
  • Product description: KUNAG is a company specializing in the research and development, production, customization and system integration of components in the field of fluid control. Its products mainly include corrosion-res
  • INQUIRY
Technical parameters of two position three-way solenoid valve:
Action mode: direct action type
Diameter range: dn0 1-25
Working environment temperature: - 30 - + 80 ℃- 50—+100℃
Working temperature of coil: < + 50 ℃, < + 85 ℃
Control mode: one in two out, two in one out
International standard voltage: AC (380, 220, 110, 24) V, DC (220, 110, 24, 12) V
Circulating fluid medium: water, gas, oil, ultra-low temperature, ultra-high temperature, corrosive, flammable and explosive and other fluids
Circulating fluid temperature: < - 100 ℃, < - 40 ℃, < + 60 ℃, < + 120 ℃, < + 200 ℃, < + 350 ℃
Circulating fluid pressure: 6bar, 16bar, 25bar, 40bar, 63bar, 100bar, 200bar, 250bar
Valve body material: stainless steel (304, 316, 316L)
Connection mode: thread (internal thread, external thread), flange, welding, clamp and union

Leakage: zero leakage
