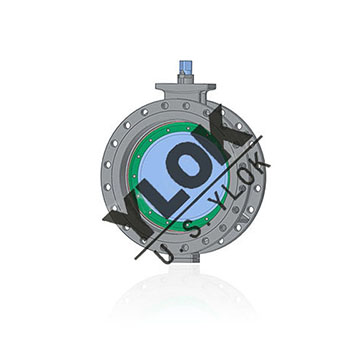

Imported three-eccentric regulating butterfly valve product overview:
The American YLOK imported triple eccentric hard-seal regulating butterfly valve adopts a triple eccentric structure design. The valve plate has no friction with the valve seat during the full stroke range of opening and closing, which eliminates the seat wear caused by the opening and closing of the rotary control valve The leakage caused. The valve seat adopts a multi-layer structure, and the sealing surface is formed by the combination of metal and non-metal materials. It performs well under high temperature and low temperature conditions. This series of butterfly valves have a long service life and excellent sealing performance, which is suitable for almost all gas and liquid adjustment and cut-off applications in industrial process control.
Main technical parameters of imported triple eccentric regulating butterfly valve:
Trim features: triple eccentric structure
Multi-level sealing valve seat
Hard seal
Body type: straight-through
Bonnet form: standard one-piece
Flow characteristics: approximately equal percentage
Caliber range: DN50-1000 (2"-40")
Pressure rating: PN1.6, 4.0, 6.3Mpa (ANSI 150, 300, 600LB)
Leakage class: ASME B16.104 Ⅵ (standard valve seat)
Pipe connection method: wafer type, flange type
Applicable temperature range: -30°～550°
Actuator type: pneumatic piston actuator
Electric actuator
Worm gear manual

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
