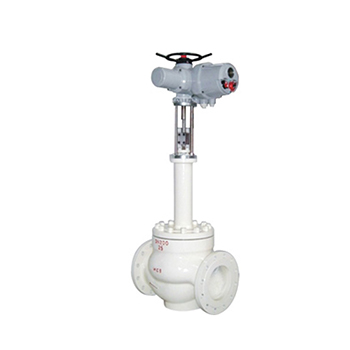

Imported high pressure difference control valve
Product overview of imported high pressure differential valve
The American YLOK imported high-pressure differential control valve (also known as multi-stage pressure reduction control valve) uses the most advanced porous multi-stage pressure-reducing valve cage, suitable for high-pressure differential fluid and steam conditions, and the multi-stage pressure reduction control valve has pressure drop Features such as low loss, large flow, high accuracy of flow characteristic curve, and good dynamic stability. The multi-stage pressure reducing regulator (high pressure differential regulator) can well control the flow rate of the fluid flowing through the valve trim, so it can greatly reduce noise and effectively prevent cavitation caused by liquid. Multi-stage pressure reducing valve is mainly used in environments with cavitation, high noise and high fluid pressure difference.
Imported multi-stage pressure-reducing regulating valve adopts sleeve-oriented and balanced working pressure spool. It is a regulating valve with a novel structure. Because the valve core has cam eccentricity, it can also reduce valve seat damage and improve sealing characteristics. There is a guide wing behind the valve core, which is conducive to the smooth flow of fluid and has good stability. On the other hand, it also has the advantages of large flow rate and wide adjustment range. Suitable for friction and erosion resistant media containing solid materials and viscosity. This type of control valve can be used in places where the pressure difference is large and the working conditions are flashing and cavitation.
    According to the difference of main parameters, design multiple different pressure reducing cages to form a multi-stage pressure reducing internal part, and design the cages according to different working conditions to ensure that the flashing and cavitation problems of the valve are eliminated. The medium is throttled right after it contacts the first cage, and the high pressure difference at the inlet is gradually reduced by multiple throttling, which reasonably ensures that when the medium flows in the valve, the working pressure is always above its saturated vapor pressure. , It also eliminates the possibility of flashing and cavitation, and extends the service life of the regulating valve in * working conditions.
Main technical parameters of imported high pressure differential valve
Valve body
Valve body form High pressure forged valve body
Nominal diameter DN15～250mm
Nominal pressure PN10.0～42.0MPa
Connection form flange (FF RF RTJ), welding (SW BW)
Bonnet type: Integral type -40～+450℃
Gland type Bolt compression type
Sealing packing V-type PTFE packing, impregnated PTFE asbestos packing
Trim
Spool form Multi-stage cage spool with hole
Flow characteristics linear, equal percentage
Executive agency
Actuator model 3810 series, PSL series
Main technical parameters Power supply voltage: 220V/50Hz, input signal: 4-20mA or 1-5V•DC, output signal: 4-20mA•DC
Protection level: equivalent to IP55, explosion-proof mark: ExdⅡBT4, manual operation function: handle
Environment temperature: -25～+70℃, environment humidity: ≤95%

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
