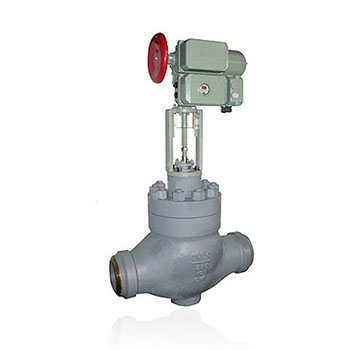

Imported electric high temperature control valve
YLOK imported electric high temperature regulating valve from YLOK in the United States means that the valve stem is equipped with a heat sink and has a heat dissipation function. It is composed of 3810 series (PSL series) electronic electric actuator and high temperature regulating valve body, and is composed of 3810 series (or PSL series) Composed of an electric actuator and a fine and small regulating valve body, which contains the function of feeding clothes, accepts a unified 4-20mA or 1-5V·DC standard signal, and converts the 4-20ma current or 1-10v voltage signal into a corresponding straight line Displacement, automatically control the opening of the regulating valve to achieve continuous adjustment of process parameters such as the pressure, flow, temperature, and liquid level of the fluid in the pipeline.
The imported electric heat dissipation regulating valve regulating mechanism adopts a balanced valve plug structure. The electronic electric high temperature regulating valve has the characteristics of good valve stability, not easy to vibrate, low noise, low temperature sensitivity, low allowable pressure difference, and high temperature. . Imported electric heat-dissipating regulating valve is widely used in high-temperature media, where the flow rate is large, the temperature is high, and the leakage requirement is not strict.
The main products are imported electric cooling control valve, imported electric cooling three-way control valve, imported high temperature cooling control valve
2. Main technical parameters of imported electric heat-dissipating regulating valve
 Valve body
Body form: straight-through casting ball valve
Nominal diameter: DN25～300mm
Nominal pressure: PN1.6, 2.5, 4.0, 6.4
Flange standards: GB/T9113, JB/T79
Connection form: flange (FF RF RTJ), welding (SW BW)
Bonnet form: high temperature type +230～+450℃, ultra high temperature type+230～+560℃
Gland type: bolt compression type
Sealing packing: metal graphite spiral wound gasket, flexible graphite, carbon fiber packing
Trim
Spool form: single seat, cage, sleeve spool
Flow characteristics: linear, equal percentage
Executive agency
Actuator model: V3810L series, PSL series
The main technical parameters
Power supply voltage: 220V/50Hz, input signal: 4-20mA or 1-5V·DC, output signal: 4-20mA·DC
Protection level: equivalent to IP55, explosion-proof mark: ExdⅡBT4, manual operation function: handle
Ambient temperature: -25～+70℃, ambient humidity: ≤95%

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
