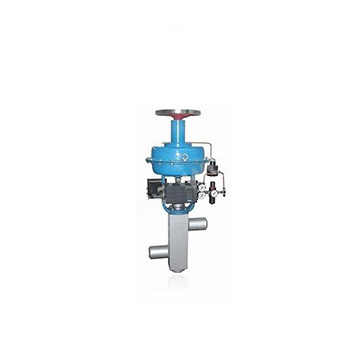

Regular blowdown valve for imported boiler
The regular blowdown valve for imported boilers imported from YLOK is a kind of anti-cavitation multi-stage pressure reducing valve. The specially designed valve trim makes the fluid pressure drop step by step, controls the flow rate, and prevents cavitation damage; the throttle part is separated from the sealing surface to effectively protect the sealing surface. The surface of the valve trim is hardened to achieve a hardness of about HRC70, which is resistant to erosion and has a long life; there are large gaps on the surface of the valve core, and the fluid contains particles, and the valve core will not jam. This valve is an ideal solution for the power plant to regularly remove insoluble precipitated impurities in the boiler water.
Features of regular blowdown valve for imported boilers
Trim features: Top-oriented unbalanced trim structure
Multi-stage throttle valve core structure
Valve body type: straight-through angle type
Bonnet form: standard type, heat dissipation type
Flow characteristics: equal percentage linear quick opening
Product performance of regular blowdown valves for imported boilers
       The pressure of the fluid is gradually reduced, and the direction of the fluid is constantly changed, increasing the flow resistance. Control the flow rate to prevent cavitation damage. Four-stage multi-stage throttling, and the fluid passage is gradually expanded to suit the characteristic that saturated liquid becomes steam volume expansion as pressure decreases, reducing fluid erosion and erosion on the valve core. The throttle surface is separated from the sealing surface to effectively protect the sealing surface. The surface of the valve core and valve core sleeve is hardened, and the hardness reaches about HRC70, which is resistant to erosion and has a long life. There is a big gap on the surface of the valve core, the fluid contains 2-3mm, welding slag and other solid particles, the valve core will not be stuck, and the action is flexible. The valve stem and the push rod of the electric actuator adopt a flexible connection to ensure a cut-off tightness. It is common with regulating valve and has good interchangeability.
Technical parameters of regular blowdown valve for imported boilers
Caliber range: DN25-50 (1”-2”)
Pressure rating: PN25, 32Mpa (ANSI 1500, 2500LB)
Leakage class: ASME B16, 104 Ⅴ (standard metal seat)
Pipe connection method: flange type butt welding type
Applicable temperature range: less than 420°
Actuator type: pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator
