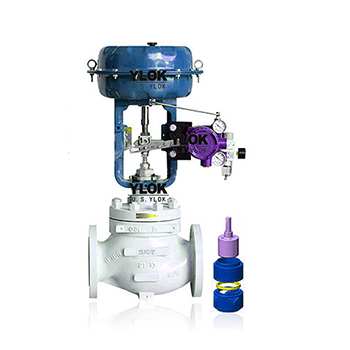

Imported pneumatic control valve with positioner
American YLOK imported pneumatic control valve with positioner has standard type, adjustable cut-off type, bellows-sealed type, and double-seat type to choose from. It has compact appearance, light weight, sensitive action, small pressure drop loss, flow characteristics, and It is widely used in petroleum, chemical, paper, electric power, metallurgy and other industries.
Structural features of imported pneumatic control valve with positioner
Compact structure, small parts, easy to maintain
Complete varieties, many choices, suitable for multiple media
Excellent adjustment performance, flow coefficient
Double seat structure can be applied to large pressure difference
The bellows structure completely eliminates the leakage of the medium and has a long service life
Imported pneumatic valve with positioner parameters
Air drive
Compressed air 5-7bar (with handwheel available)
Electric drive: DC24V, AC220V, AC380V
Nominal passage: 20～200mm
Nominal pressure: 1.6～6.3Mpa
Applicable temperature: -29～+425℃
Connection method: flange
Valve structure: single seat, double seat, sleeve, three-way, angle type
Body material: cast iron, 316, 304, carbon steel
Spool material: alloy, 316, 304
Sealing material: PTFE, alloy
Applicable medium: gas, water, oil, etc.
Optional accessories: limit switch, positioner, solenoid valve, pressure reducing valve
Origin: United States

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
