Imported sanitary tank bottom valve
Overview of imported sanitary tank bottom valve products:

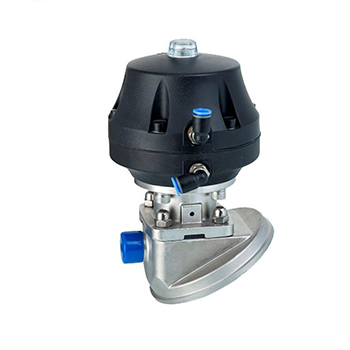

American YLOK imported sanitary tank bottom valve (mainly diaphragm tank bottom valve), using a variety of surface polishing, no dead angle can be automatically empty, widely used in fermentation tanks, preparation tanks, liquid mixing tanks, seed tanks, cleaning tanks Wait for tank equipment. It solves the phenomenon that crystals and solid precipitates are blocked due to the long straight discharge pipe and cannot be completely stirred evenly.
Features of imported sanitary tank bottom valve:
1. The structure is compact, which can ensure installation in a small space.
2. The structure is ideal both in terms of flow rate and process requirements. In addition, there will be no turbulence when emptying.
3. Can provide all current international standard interfaces, such as welded, clamped or threaded.
4. The valve body material is SUS316L.
5. The surface of the valve body can be mechanically polished or electro-polished according to customer requirements, and the accuracy can reach 0.25um.
6. The tank bottom valve can be equipped with manual or pneumatic.
Performance range of imported sanitary tank bottom valve:
Nominal diameter: DN25-DN100
Nominal pressure: ≤10bar
Temperature range: -10℃～120℃
Compressed air pressure: 0～8bar
The part in contact with the material is stainless steel 304 or 316L
Gasket: EPDM or PTFE

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
