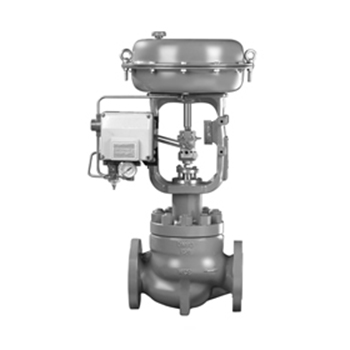

Imported pneumatic control valve
Imported pneumatic control valve product overview
American YLOK imported pneumatic control valve adopts double-guide structure, equipped with multiple spring actuators, and has the advantages of compact structure, light weight, sensitive action, large valve capacity, accurate flow characteristics, and convenient disassembly and assembly. It is widely used in the precise control of gas, liquid, steam and other media, and the process parameters such as pressure, flow, temperature and liquid level are kept at a given value. It is especially suitable for the occasions where the allowable pressure difference is large and the allowable leakage is large and not very clean medium. This series of products has many varieties such as standard type, bellows sealed type, jacket heat preservation type. The nominal pressure rating of the product is PN10, 16, 40, 64; the valve body diameter ranges from DN20 to 800. The applicable fluid temperature ranges from -200℃ to +560℃, and there are many grades within its range. Leakage standards are level II or IV. The flow characteristic is linear or equal percentage. A variety of varieties and specifications to choose from
Features of imported pneumatic control valve
The top, bottom and layer double-guided double-seat regulating valve has good stability during operation.
There are two valve cores and valve seats, and the "four-way" valve body is adopted, which can be easily converted from the front installation to the reverse installation, and the air-close valve becomes the air-open valve.
The valve body is designed according to the principle of fluid dynamics with a constant cross-section flow channel with low flow resistance and a large rated flow coefficient.
The unbalanced force is small and the allowable pressure difference is large.
The actuator adopts a multi-spring structure and the height is reduced by 30%. 30% weight reduction.
The adjustable range is large, and the inherent adjustable ratio is 50%.
Main technical parameters of imported pneumatic control valve
Valve body, bonnet: HT200, 50ZG core, valve seat: 1Cr18Ni9Ti, Stellite alloy surfacing
Filling material: PTFE, flexible graphite
Corrugated tube: 1Cr18Ni9Ti
Filling sheet: rubber asbestos board, 10#, 1Cr18Ni9Ti, asbestos spiral wound gasket
Membrane cover: A3
Corrugated diaphragm: rubber clip reinforced polyester fabric
Spring: 60SiMn
Stem, push rod: 2Cr13, 1Cr18Ni9Ti
Bushing: 2Cr13
Soft seal spool: reinforced polytetrafluoroethylene
Valve body action mode
Air-to-close type (B)-valve position is open when air is lost (FO); air-to-open type (K)-valve position is closed when air is lost (FC)
annex
Positioner (HEP type, YT1000 type), air filter pressure reducer, position valve, travel switch, valve position transmitter, handwheel mechanism, etc.

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
