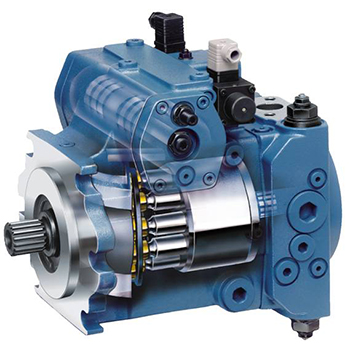

·Product Details: Rexroth Rexroth A4VG High Pressure Piston Pump Series
- Displacement from 28 to 250
- Common pressure 400bar (40Mpa)
- Peak pressure 450bar (45Mpa)
Rexroth A4VG features:
Swashplate axial piston variable displacement
pump for closed circuit hydrostatic transmission
◆The flow rate is proportional to the drive speed and displacement and can be steplessly variable;
◆ The flow increases from zero to its maximum with the swashplate swing angle;
◆The swashplate can be placed in the middle position to smoothly change the flow direction of the liquid flow;
◆ A variety of variable methods that are easy to match with various control and regulation systems;
◆The
pump is equipped with two relief valves on the high pressure oil side to protect the hydrostatic transmission (
pump and motor) from overloading;
◆The high pressure relief valve also has the function of the charge valve;
◆ Built-in auxiliary
pump is used as charge
pump and control
pump;
◆ The maximum charge pressure is limited by a built-in charge relief valve;
◆The whole series has built-in pressure shut-off valve;
typical application:
Concrete
pump truck, heavy hydraulic flatbed truck, hydraulic
pump station
Technical Para
meters:
Numerical table (theoretical value, ηmh and ηv are not considered; the value is rounded)
1) Maximum speed: - The power consumption is half of the angular power (for example, when Vg man and PN/2)
2) High maximum speed: - When running at high speed and no load
- During engine overspeed: Δp=70...150 bar and Vg max
- For reverse peak load: Δp < 300 bar and t < 5 seconds.
Rexroth A4VG common models:
A4VG125EP2D1/32R-NZF02F001DH
A4VG125EP2DM1/32L-NZF02F001S
A4VG125EP2DT1/32R-NZF02F001S
A4VG125HD1D1/32R-NZF02F001D
A4VG125HD1D2/32R-NSF02F071S
A4VG125HD1DM1/32L-NSF02F001S
A4VG125HD1MT1/32R-NSF02F021S
A4VG125HDMT1/32R-NSF02F691S
A4VG125HWD1/32L-NZX02F001S
A4VG125HWD1/32R-NZF02F071D-S
A4VG125HWD1/32R-NZF02F071D
A4VG125MSD1/32R-NSF02F021D
A4VG125EP4D1/32L-NAF02F691DP +A11VO95LRDS/10L-NSD12N00
A4VG125EP4D1/32R-NAF02F691DP +A11VO95LRDS/10R-NSD12N00
A4VG180EP4D1/32R-NTD02F691DP +A11VO130LRDS/10R-NSD12K01-S
A4VG180EP2DM1/32L-NZD02F001D
A4VG180DA2D2/32L-NSD02F001DT
A4VG180HD3DT1/32R-NZD02F01XS-SK
A4VG180EP4DT1/32L-NZD02F001PP
A4VG180DA2D2/32L-NZD02F001SH
A4VG180DA2D2/32R-NZD02F041SH
