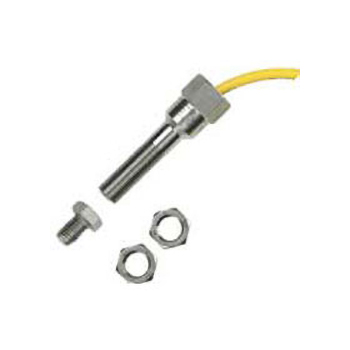

DT series valve position switch
product manual:
Stainless steel housing, durable and reliable magnetic sensing point
DT series valve position switch has reliable, magnetic linkage, stainless steel, can be replaced arbitrarily, can use AC or DC and other functions, it has no moving parts, no additional cost to deal with sealing and leakage problems.
This series of switches uses a rugged, fully-sealed reed switch packaged in a stainless steel housing with a 316 stainless steel magnetic tube and a sensing distance of 0.1 "(2.54 mm). If a large magnetic tube is used, the sensing distance Available up to 0.5 "(12.7 mm).
This detection switch is very suitable for hazardous or corrosive applications where intrinsically safe explosion protection is required. Can be installed in any position. If installed in a hazardous location, refer to local codes. The protection of this detection switch is NEMA 1, 3, 4, 4X, 6, 7, 9, 12 and 13; it also has explosion-proof certification Class I, Groups A, B, C and D; Class II, Groups E, F and G, Divisions 1, 2 and 3, IP68 protection standards for immersion in water.
Specifications:
Temperature Limit: -40 to 163 ° F (-40 to 73 ° C).
Switch Type: Tungsten, SPDT, Form C.
Electrical Rating: 3A at 125 VAC, 3A at 30 VDC.
Enclosure Rating: Weatherproof; Hermetically Sealed; Explosion-proof UL & CSA listed for Class I, Groups A, B, C & D; Class II, Groups E, F & G, Divisions 1 & 2.
Intrinsically Safe: Simple Apparatus (w / barrier).
Operating / Response Time: 3.0 msec.
Initial Contact Resistance: 0.50 ohms (max).
Repeatability: 0.005 in. (.01 cm).
Hysteresis: 0.030 in. (.08 cm).
Electrical Connection: Factory sealed with 18 "minimum, 4 conductor, PVC insulated, 18 AWG-green / red / black / white (ground / NC / NO / Common).
Housing: 316 Stainless Steel.
Potting: Epoxy Resin.
Conduit: 1/2 "-14 female NPT.
Weight: 0.32 lb (145 g); 0.45 lb (204 g) with actuator.
Agency Approvals: CSA, cUL, UL.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
