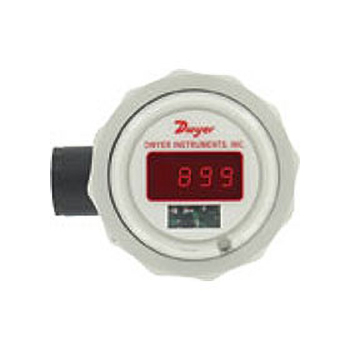

LPI two-wire loop indicator
product manual:
With square function and user-defined curve function, 4-digit LED digital display
LPI type two-wire loop indicator accepts 4-20 mA input signal and can display process variables: pressure, level, flow, temperature or relative humidity. The bright red LED digital display can be displayed on site or remotely. Can be programmed with three buttons on the panel. Configurable input / output range, engineering unit, offset, decimal point position, security password, etc. LPI can also display 19 specific curves such as linear and square. Polycarbonate housing is NEMA 4X (IP65) protected, with 1/2 "NPT female pipe connection on the side.
Specifications:
Input: 4 to 20 mA.
Maximum Input Current: 100 mA for 1 minute.
Accuracy: ± 0.02% FS.
Stability: Zero: 0.002% / ° C; Span: 100 ppm / ° C.
Power Requirements: 2-wire 4-20 mA loop powered.
Display: 4-digit, 7.6 mm (high) red LED.
Maximum Display Range: -1999 to 9999.
Ambient Operating Temperature: -4 to 167 ° F (-20 to 75 ° C).
Storage Temperature: -58 to 185 ° F (-50 to 85 ° C).
Weight: 6.0 oz (170 g).
Front Panel Protection: NEMA 4X (IP66).
Agency Approvals: CE.
