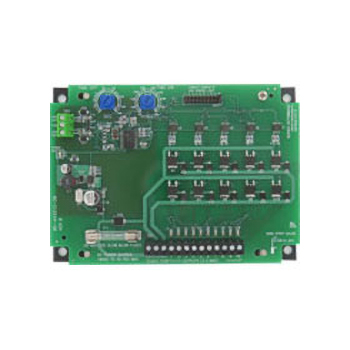

DCT500ADC Series Economical Backflush Timing Controller
product manual:
For low voltage applications
DCT500ADC series economical backflush timing controller is most suitable for pneumatic conveying system. It is used for 10-35V power automatic backflush system. Optional 4, 6 or 10 channels, using standard product size, can save installation space and facilitate system installation.
The DCT500ADC series is simple to use. Two potentiometers are used to set the on time and off time, with high limit control or low limit control in the automatic backflush control.
For added safety, the board and input signals are isolated from the power supply.
If required, a weatherproof enclosure is available. When using automatic backflush control method, we can choose our A3000 series Photohelic @ micro differential pressure gauge / switch or 1800 series micro differential pressure switch to cooperate with.
Specifications:
Output Channels: 4, 6, & 10 channels.
Power Requirements: 10 to 35 VDC.
Power Consumption: 0.6 W.
Solenoid Supply: 3A max. Per channel.
Fuse: Type 3 AG, 3 A @ 250 VAC.
Temperature Limits: -40 to 140 ° F (-40 to 60 ° C).
Storage Temperature Limits: -40 to 176 ° F (-40 to 80 ° C).
On Time: 50 msec to 500 msec.
On Time Accuracy: ± 10 msec.
On Time Stability: <± 1 ms.
Off Time: 1 second to 180 seconds.
Off Time Accuracy: ± 5% of setting.
Weight: 9 oz (255 g).
Agency Approvals: CE.
