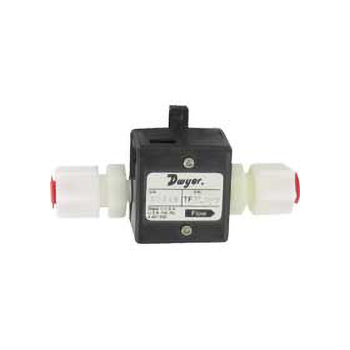

TFP-LP series liquid turbine flow
meter
product manual:
PPS body, 0-5VDC output and pulse output
Series TFP-LP Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These
meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. Couple this unit with a Series TM2 Flow Totalizer for a remote flow monitoring display. A power adapter or mating cable assembly is required for operation.
Service: Clean liquids compatible with wetted materials.
Wetted Materials: PPS, acetal, sapphire, glass, epoxy, and fluoroelastomer.
Accuracy: ± 1% of full scale.
Linearity: ± 1% of full scale.
Repeatability: ± 0.2% of full scale.
Temperature Limits: 41 to 131 ° F (5 to 55 ° C); Storage: 32 to 158 ° F (0 to 70 ° C); Sensitivity: ± 0.2% of full scale per ° C.
Pressure Limits: 100 psig (6.8 bar).
Process Connection: Compression fitting, see Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page.
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.19 lb (85 g).
Agency Approvals: CE.
