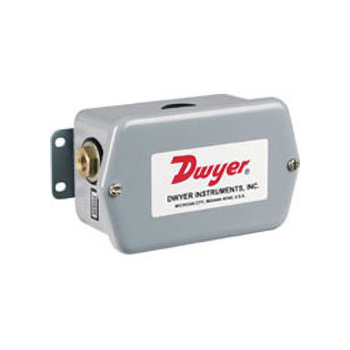

647 series differential pressure
transmitter for liquid
product manual:
Measuring range down to 0-1 inch water column, accuracy is ± 1.0%, NEMA 4 protection, two-wire system
647 series differential pressure
transmitter for liquid is used in building automation system, pneumatic system or other process control system to monitor the differential pressure of gas and liquid. It outputs a 4-20mA signal with temperature compensation for remote display, recording or control systems.
Specifications:
Service: Compatible gases or liquids on both pressure and reference sides.
Wetted Materials: Brass, vinyl, glass-filled polyester, silicon, and florosilicone.
Accuracy: ± 1.0% FS.
Stability: ± 1.5% FS output / year.
Temperature Limits: 32 to 122 ° F (0 to 50 ° C).
Pressure Limits: Ranges 1 "w.c. to 5 psi; 20 psi, 15 psi range; 45 psi, 30 psi range; 60 psi.
Thermal Effects: Zero: ± 0.05% FS / ° F, Span: ± 0.05% rdg / ° F.
Power Requirements: 18 to 30 VDC.
Output Signal: 4 to 20 mA, 2-wire.
Zero and Span Adjustments: Adjustable, ± 10%.
Loop Resistance: 400 Ω @ 18 VDC, 600 Ω @ 24 VDC, 1000 Ω @ 30 VDC.
Electrical Connection: Screw terminals, reverse polarity protected.
Process Connections: Two 1/8 "female NPT.
Housing: Gasketed steel epoxy painted, NEMA 4 (IP56).
Weight: 14 oz (397 g).
