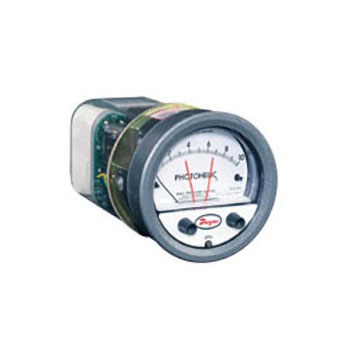

A3000 Series Photohelic® Micro Differential Pressure Switch / Meter
product description:
The A3000 series Photohelic® micro differential pressure switch /
meter uses the reliable and durable Magnehelic® design concept, which combines a high precision differential pressure gauge and a highly repeatable differential pressure switch. Can measure and control the positive, negative or differential pressure of air or other compatible gases. The standard pressure rating is 25 psig (1.7 bar), and 35 psig (2.4 bar) or 80 psig (5.5 bar) can be selected. The 36000S single pressure version can measure 6000 psig (413 bar) and withstand pressures up to 9000 psig (620 bar). Two double-pole double-throw switches are used for high / low limit control. The knob on the instrument panel can easily adjust the set points. The return difference of each set point is less than 1%, which is narrower than the width of the pointer. The use of two set points can lock out different hysteresis and is most suitable for controlling fans and dampers. The differential pressure gauge reading is not affected by the switching operation, even if the power is lost, it will not affect the reading. Selectable measuring ranges from 0-0.25 inch water column (0-6 mm water column) to 30 psi (2.1 bar).
How Photohelic works
When the differential pressure between the high and low setpoint values reaches a certain setpoint, the linked light-shielding plate will block the infrared beam directed at the limit transistor, so that the transistor signal is amplified and triggers the double-pole double-throw switch action. .
Features
Protect all electronic components and circuits with an engineering plastic case. The solid-state switch and electronic components are fixed on the epoxy-protected circuit board and have a flame-retardant terminal block.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
