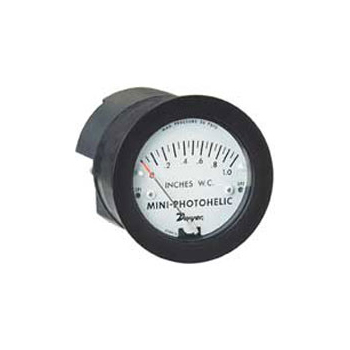

MP Series Mini-Photohelic® Micro Differential Pressure Switch / Meter
product description:
MP Series Mini-Photohelic® Micro Differential Pressure Switch / Meter combines the reliable and durable Minihelic® II differential pressure gauge with two single pole double throw setting switches for monitoring and controlling the positive, negative or Differential pressure, differential pressure gauge readings and switch actions are independent. The front panel and back panel have switch status LED indicators. The setpoint value of the switch can be adjusted by the buttons on the back panel. This small size differential pressure switch /
meter is most suitable for applications such as fume hoods, clean rooms, and dust removal and pneumatic conveying.
GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Pressure Limits: 30 psig (2.067 bar).
Temperature Limits: 20 to 120°F (-6.7 to 49°C).
Process Connections: Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
Size: 4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) dia
meter.
Weight: 23 oz (652 g).
SWITCH SPECIFICATIONS
Switch Type: (2) SPDT relays.
Electrical Rating: 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC.
Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire.
Power Requirements: 24 VDC / 24 VAC 50/60 Hz 4 W.
Mounting Orientation: Gage face in vertical position.
Set Point Adjustment: Push buttons.
Standard Accessories: (2) mounting screws, (1) .050" hex allen wrench.
Agency Approvals: CE, cULus.
