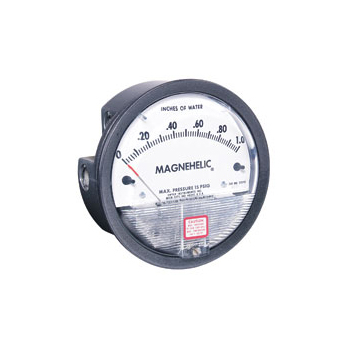

2000 Series Magnehelic® Differential Pressure Gauge
Series 2000 Magnehelic® differential pressure gauges are available in 81 measuring ranges with an accuracy of 2%. It adopts a non-wearing movement with a simple and reliable structure, which can quickly and sensitively indicate the small positive pressure, negative pressure or differential pressure of the gas. It also has the functions of anti-shock and over-pressure protection. Magnehelic® differential pressure gauges are economical and reasonable in price and easy to use, avoiding the problems of liquid evaporation, freezing and the need for horizontal correction of liquid differential pressure gauges during measurement.
2000 series Magnehelic® differential pressure gauges are widely used to monitor fan outlet static pressure,
filter resistance, measure wind speed, ventilation status, measure differential pressure on both sides of orifice plate, and also used in bubble level measurement system to monitor liquid level and monitor Gas and air mixing control ratios, monitoring of blood pressure, and respiratory pressure in medical equipment and devices.
Note: It can be used for hydrogen, but Buna-N cyanide rubber diaphragm must be selected when ordering. The working pressure is 35psi.
Service: Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
Wetted Materials: Consult factory.
Housing: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
Pressure Limits: -20 in Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
Temperature Limits: 20 to 140°F (-6.67 to 60°C). -20°F (-28°C) with low temperature option.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight: 1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
Standard Accessories: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapterswith screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)
Note: For applications with high cycle rate within gage total pressure rating, next higher rating is recommended. See Options Page.
Agency Approval: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). Note: -SP models not RoHS approved.
Accuracy: ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Size: 4" (101.6 mm) dia
meter dial face.
Enclosure Rating: IP67.
