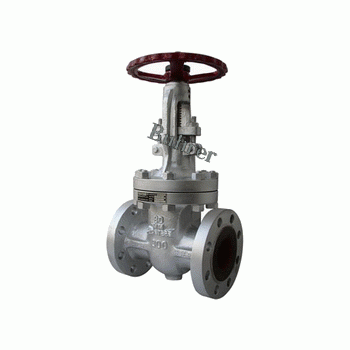

Product name: Imported stainless steel gate valve Product model: Buhrer
Drive method: manual Connection type: flange
Structural form: wedge, parallel, elastic structure Seal structure: hard seal
Pressure range: 150LB-2500LB Nominal diameter: DN15-2500
Common materials: 304,316, etc.
Product introduction
The imported stainless steel gate valve produced by Breer can be driven manually or flanged, and wedge, parallel, or elastic structure can be used as the structure, and hard seal can be used as the sealing structure. The pressure range is PN150LB-2500LB, nominal diameter. It is DN15-2500mm, and the material can be 304,316, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
Imported stainless steel gate valve-American Buhrer brand is suitable for ANSIClass 150 ~ 2500LB, working temperature <900 ℃ petroleum, chemical, thermal power stations and other working conditions of the pipeline, cut off or connect the pipeline medium. Applicable medium: water, oil, steam, etc. The operation modes are: manual, gear transmission, electric, pneumatic, etc.
Product Reference Standard
Design and Manufacturing: API 600
Structure length: ANSI B 16.10
Pressure temperature class: ANSI B 16.34
Test and Inspection: API 598
Product model specifications
Nominal pressure: Class 150 ~ 2500LB
Product structure characteristics
1. The product is designed and manufactured according to API standards, with reliable sealing, excellent performance, and can be used with imported equipment.
2.600Lb or more gate and seat seals are made of Stellite cobalt-based hard alloy, which is wear-resistant, high temperature-resistant, corrosion-resistant, good abrasion resistance and long service life.
3. The valve stem is quenched and tempered and the surface is nitrided to have good corrosion resistance and abrasion resistance.
4. Wedge-shaped elastic gate structure is adopted, and rolling bearings are set for medium and large calibers, which can be easily opened and closed.
5. The valve body has a full range of materials, and the packing and gaskets are reasonably selected according to the actual working conditions or user requirements, which can be applicable to various pressure, temperature and medium working conditions.
6.1500LB, 2500LB middle cavity adopts pressure self-tight seal structure. The sealing performance increases with the increase of the internal pressure, and the reliability is high.
7. Inverted seal is made of stainless steel threaded connection sealing seat or body surfacing austenitic stainless steel. The inverted seal is reliable. Packing replacement and maintenance can be performed without stopping, which is convenient and quick without affecting system operation.
